3P Attenuation Flow Regulator 3" with Overflow Siphon DN100
3P Attenuation Flow Regulator 3" with Overflow Siphon DN100
Couldn't load pickup availability

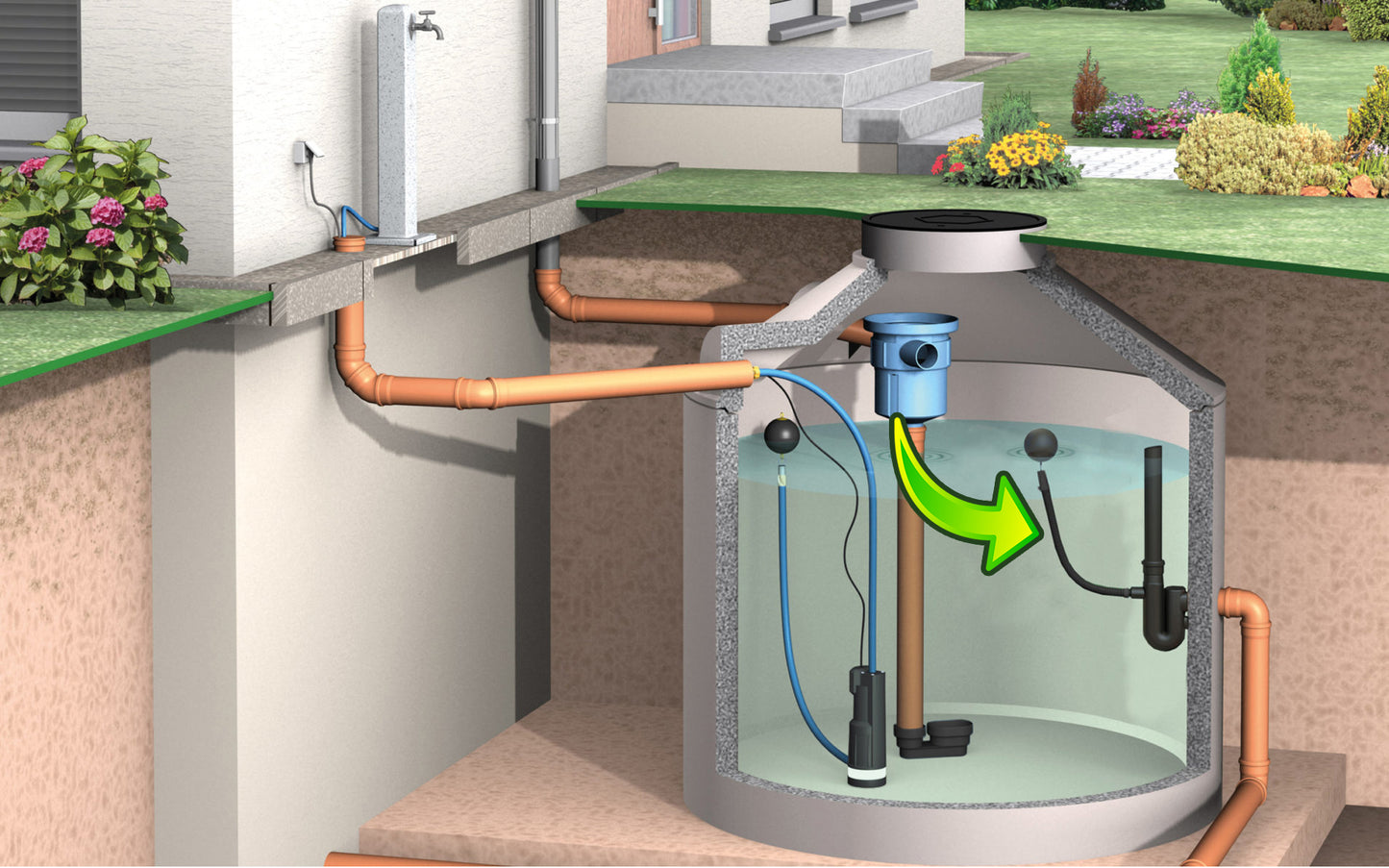

Flow regulators slow the outflow during to rain events to protect the sewer or a surface water from excessive inflows.
The Attenuation Flow Regulator ensures a regular, predefined outflow. The flow specifications of 3P flow regulators have been verified by third party testing and reports are available upon request.

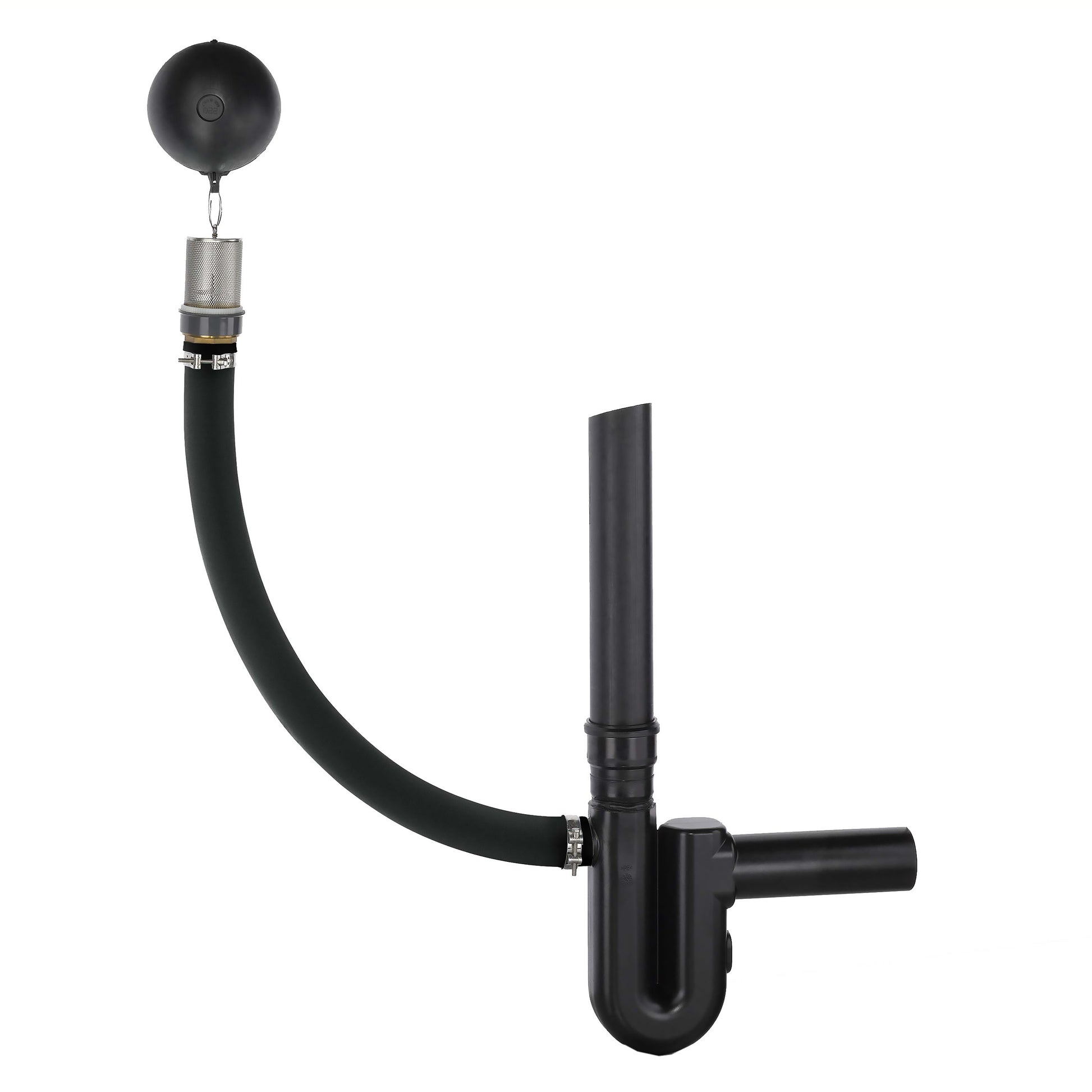

Advantage: retention throttle and overflow siphon in one part that adapts to the water level. Due to the flexible hose, the throttle adapts to the water level.
Share


Technical Specifications
• Hose dimension: 3” x 1.5 m
• Dimensions: 600 x 130 x 850 mm
• Material: Polyethylene DN 100
• Floating ball with 220 mm diameter
• Flow rates in litres / second: 0.83, 1.25, 1.61, 1.69, 1.89, 2.04, 2.44, 2.94, 3.13, 3.85

Original Equipment Manufacturer
