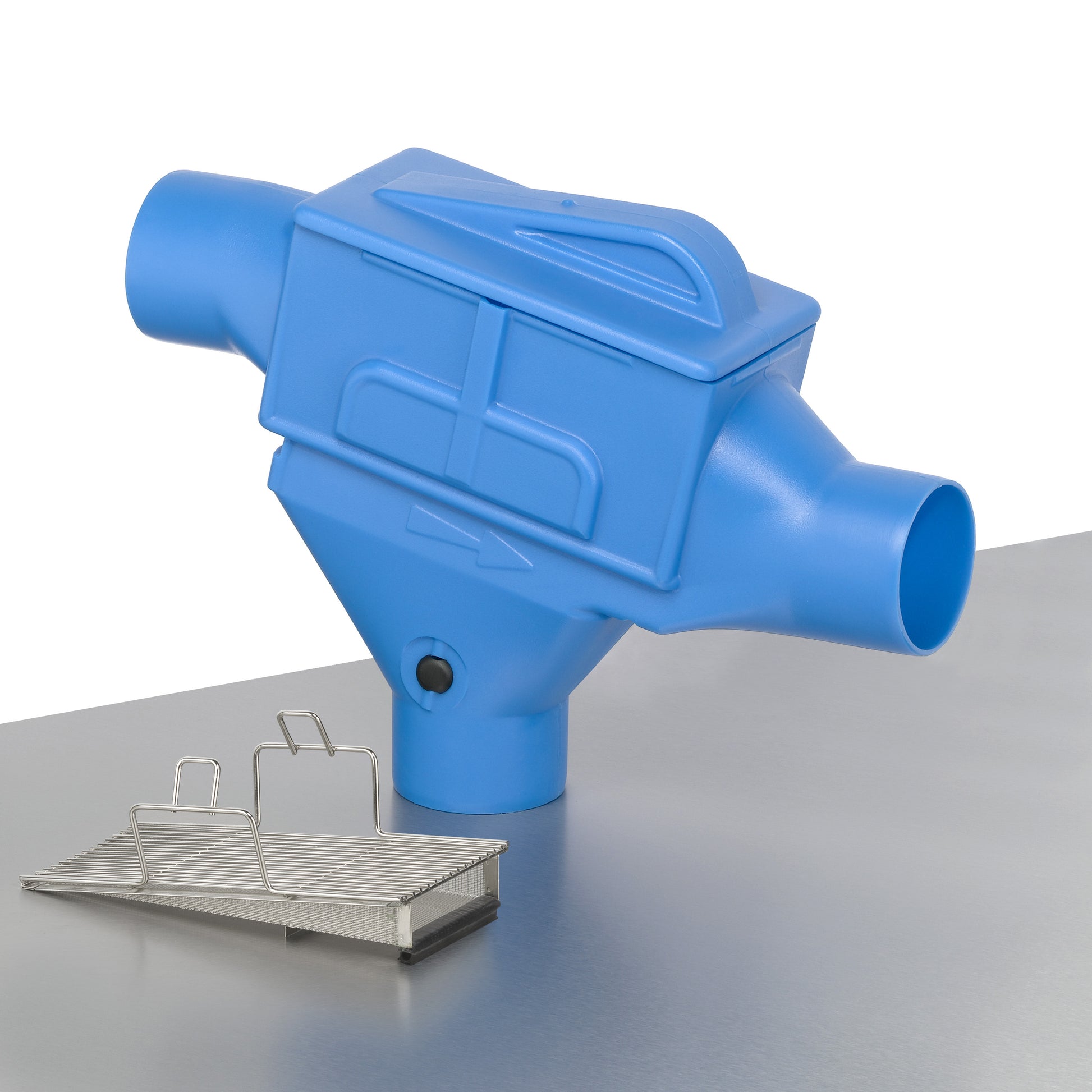

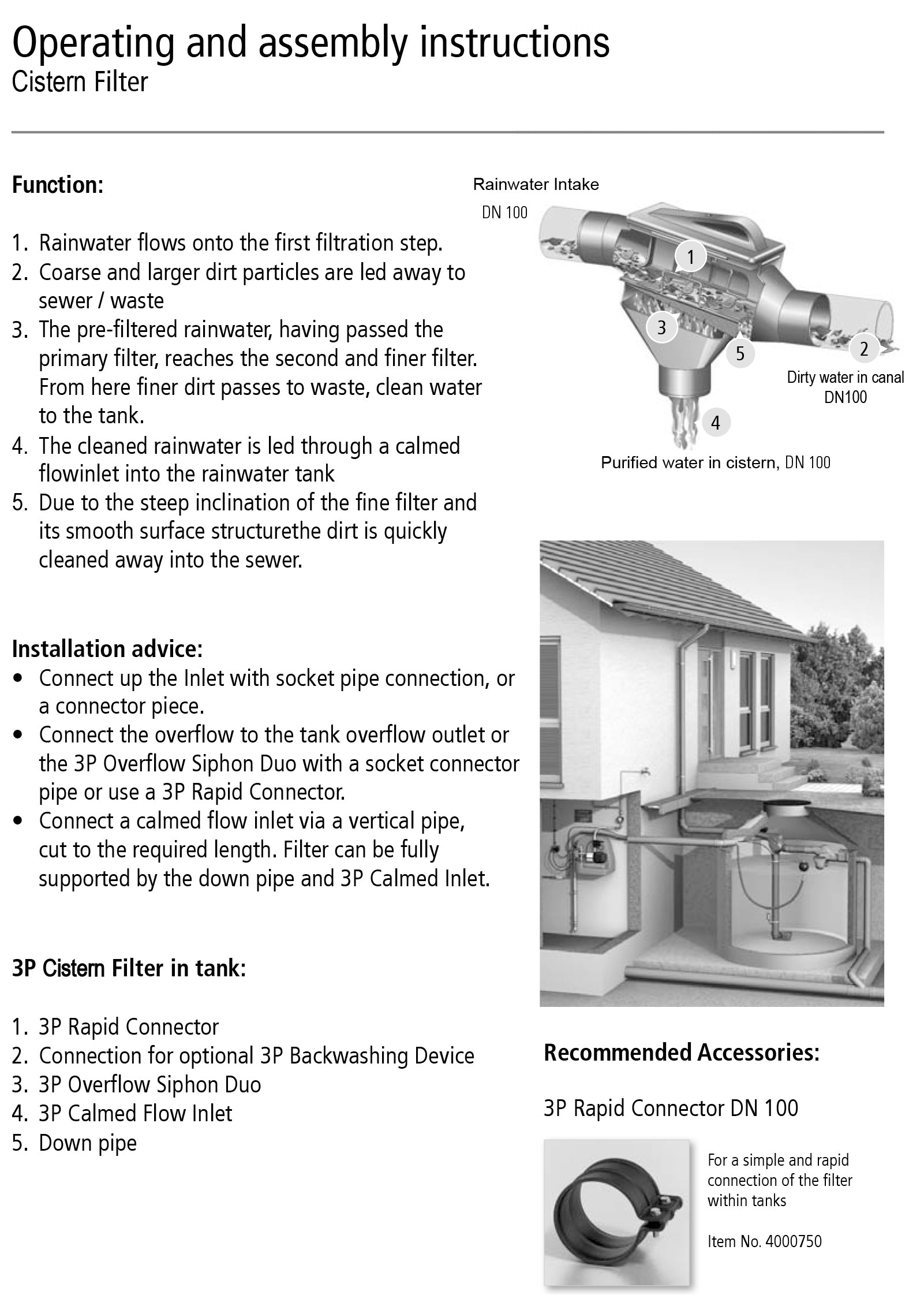

Rainwater filter for installation in rainwater storage tanks made of plastic or concrete. Special feature: 2-stage cleaning principle, therefore ideal for roof areas with large amounts of leaves. Coarse solids will be transported into the sewer via the first filter surface. Finer solids is separated out via the second filter surface.
The 3P cistern filter can be retrofitted with the 3P Backwash Set ZF. There is already an opening in the filter housing which is closed with a cap.

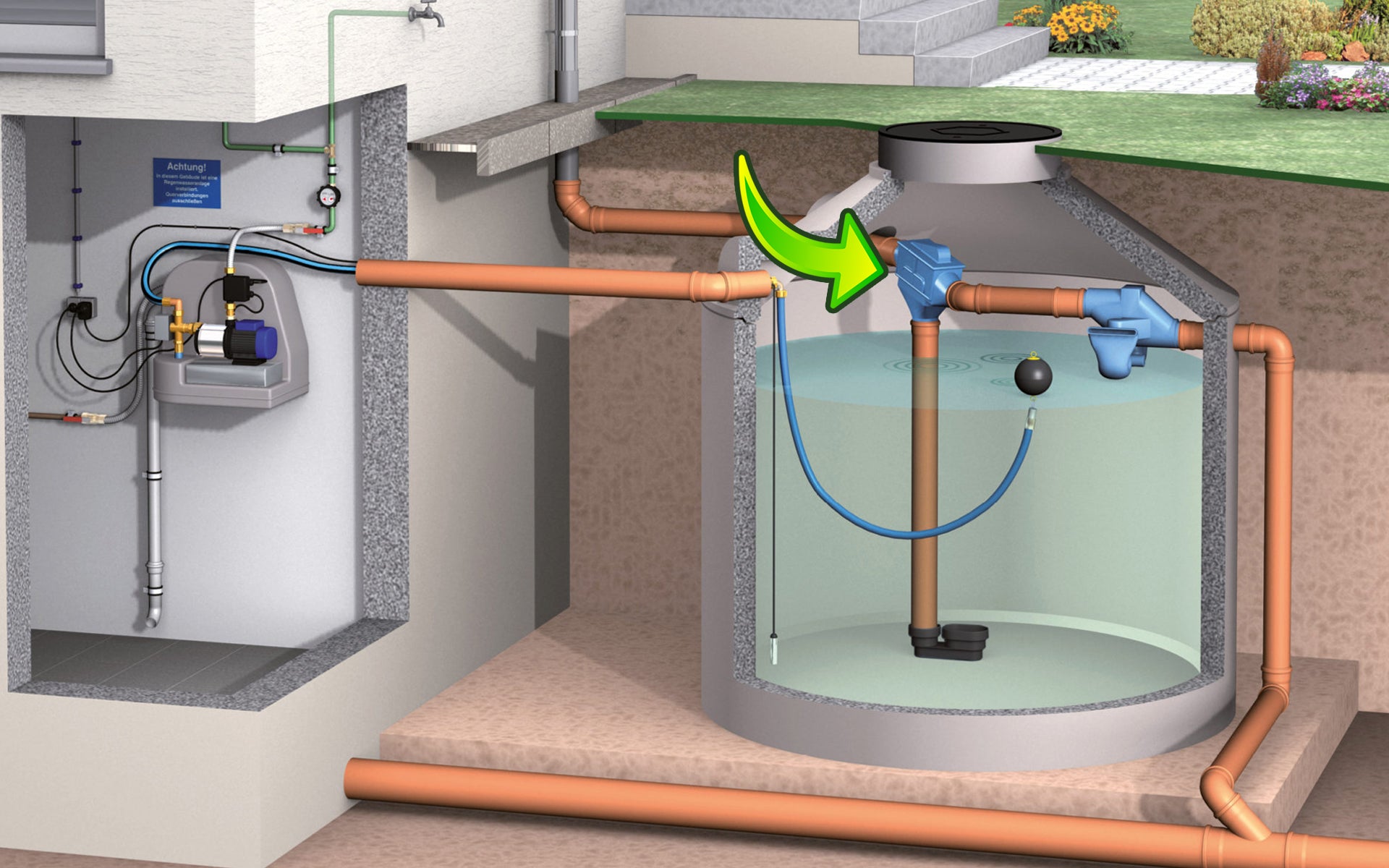

Ideally, the 3P Cistern Filter is combined with the 3P Overflow Siphon DUO and the 3P Calmed Inlet. The purified water can be used for washing machines, toilets and garden irrigation.
• Rainwater filter according to DIN 1989-2, type C
• Inlet connection: DN 100
• Outlet into the storage tank: DN 100
• Outlet into the sewer: DN 100
• Height difference between inlet and outlet:
• 120 mm
• Material filter insert: stainless steel 1.4301
• Material housing: polyethylene
• Mesh size: 0.7 x 1.7 mm

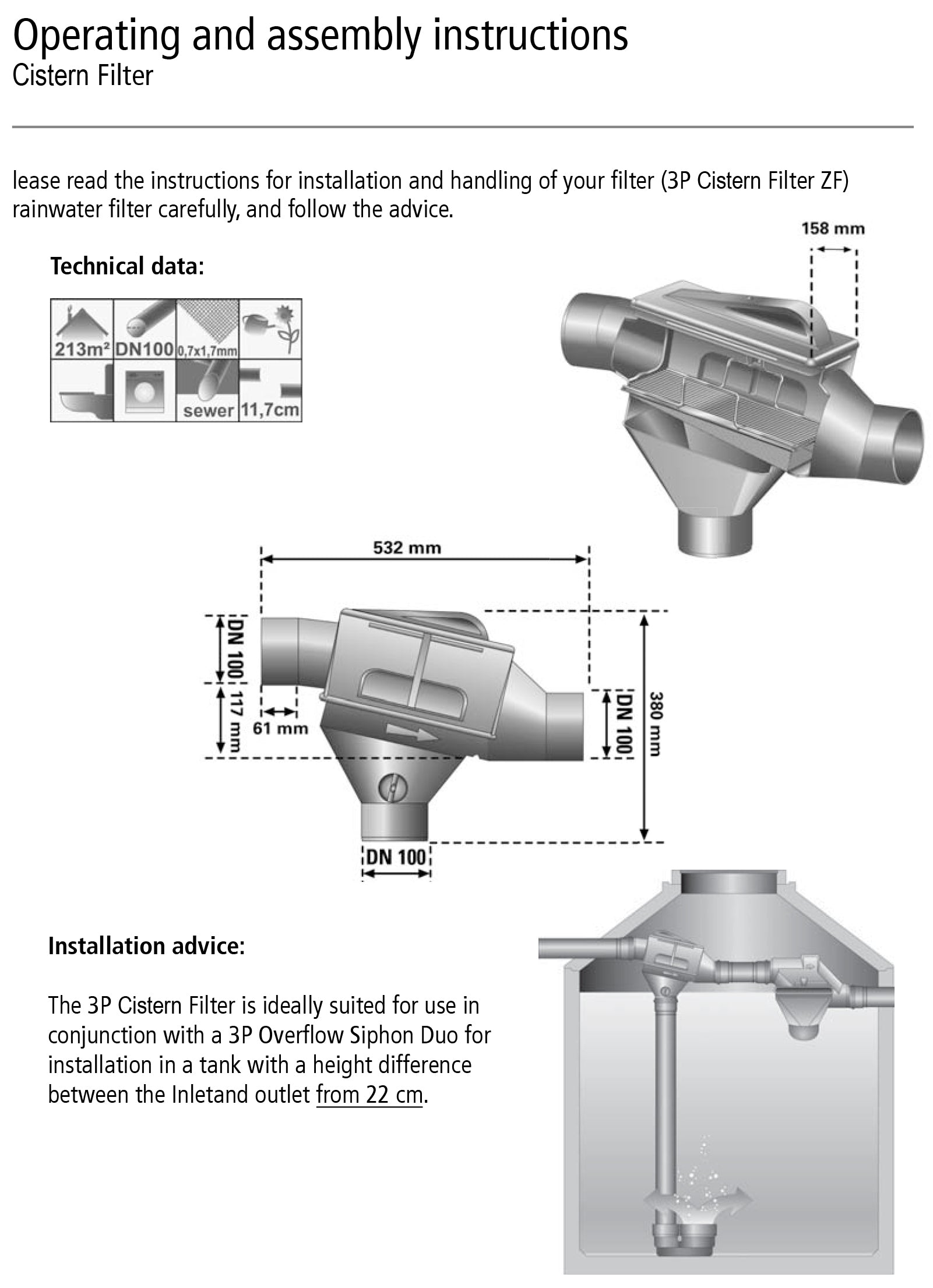

• Dimensions: 532 x 380 x 158 mm
