Flow regulators slow the outflow during to rain events to protect the sewer or a surface water from excessive inflows.

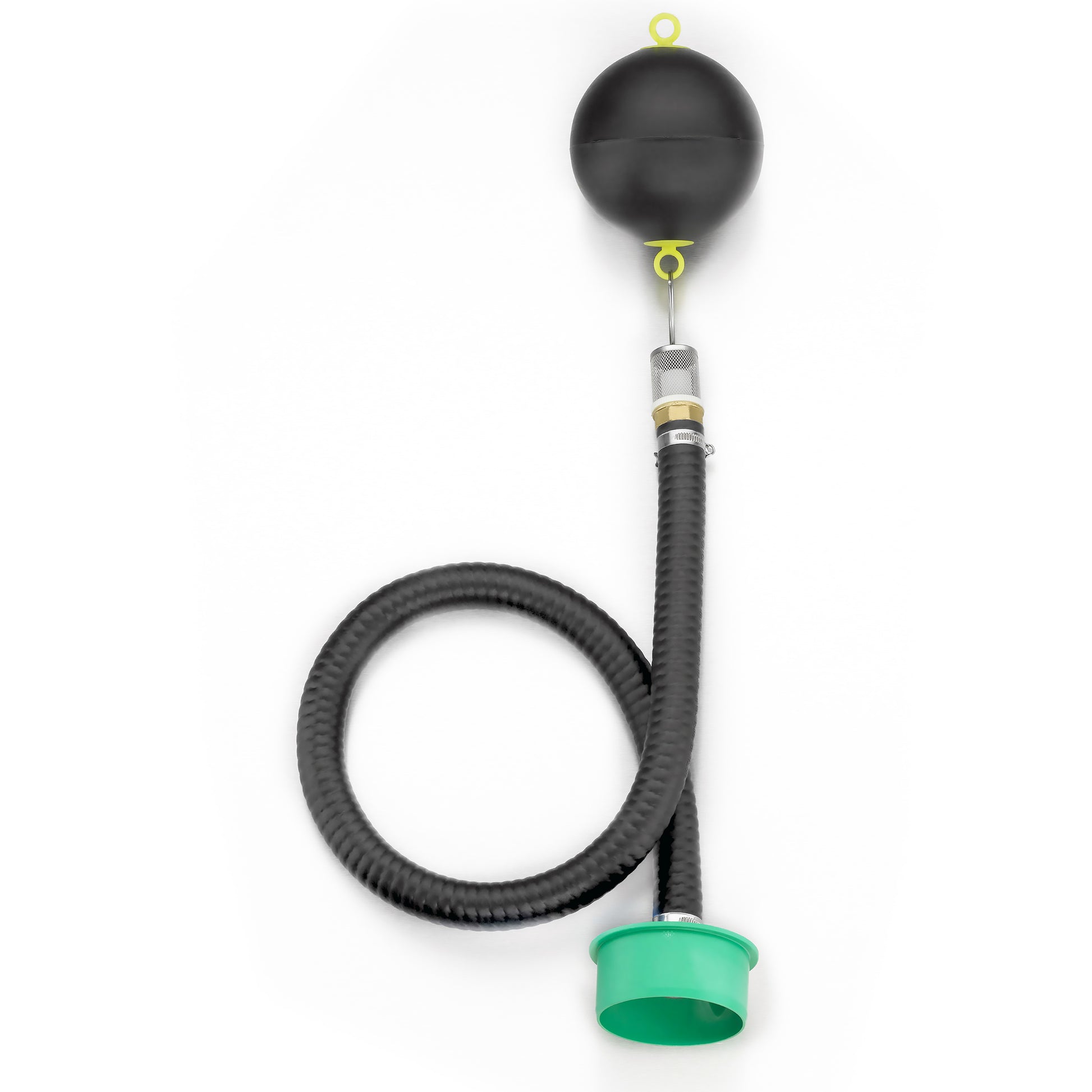

3P Flow regulator for retention reservoir, are constructed like a floating withdrawal with floating ball and filter basket. The throttle element is located between the filter basket and the hose nozzle. The throttle volume is adjusted at the throttle element.
• Hose dimension: 1“
• Hose length: 1.3 m
• Sleeve plug: KG 2000 DN 100
• Floating ball with 140 mm diameter
• Flow rates in litres / second: 0.07, 0.13, 0.17, 0.23, 0.25, 0.29, 0.40, 0.45
• The flow specifications of 3P flow regulators have been verified by third party testing and reports are available upon request.
