Flow regulators slow the outflow during to rain events to protect the sewer or a surface water from excessive inflows.

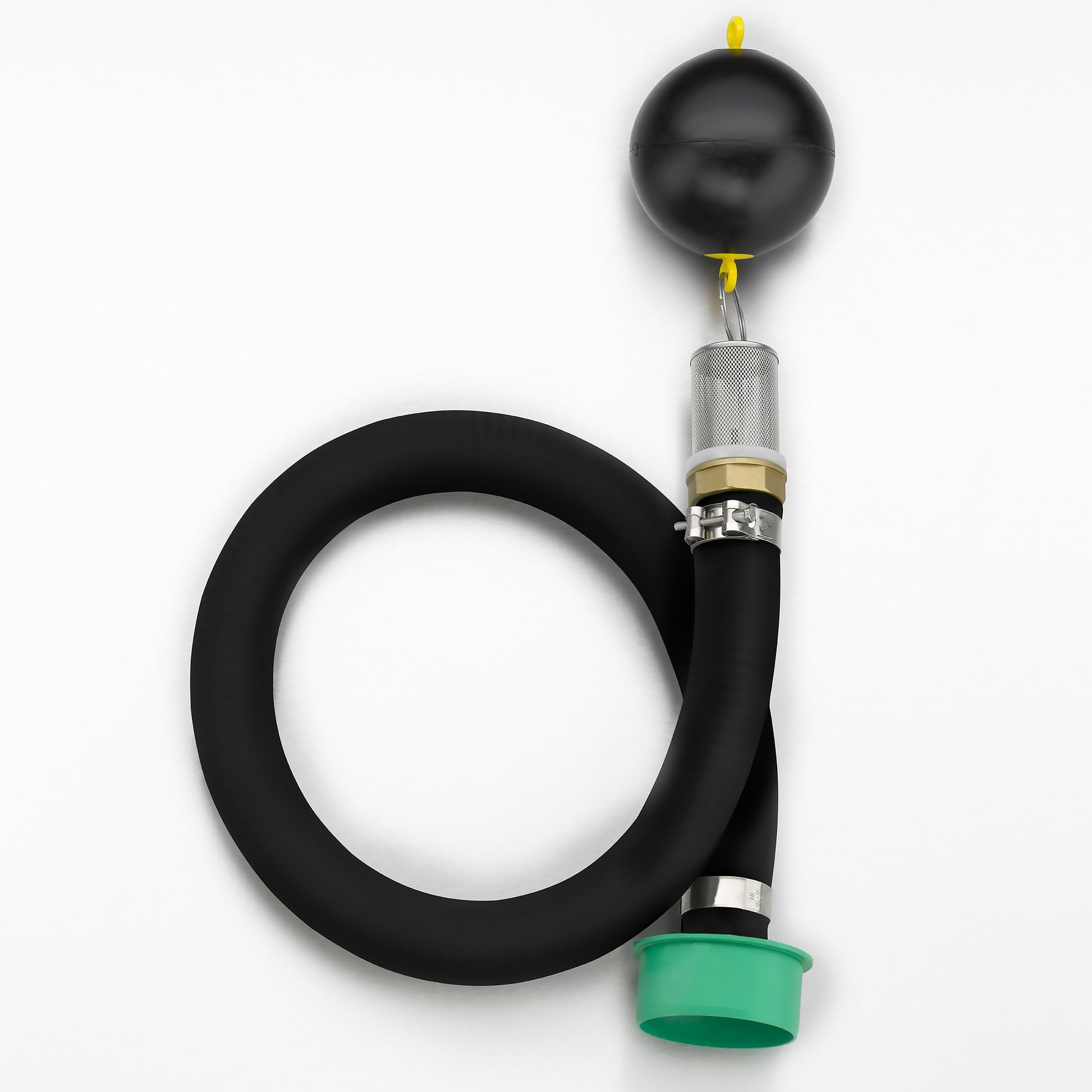

3P Flow regulator for retention reservoir, are constructed like a floating withdrawal with floating ball and filter basket. The throttle element is located between the filter basket and the hose nozzle. The throttle volume is adjusted at the throttle element.
• Hose dimension: 2“
• Hose length: 1.5 m
• Sleeve plug: KG 2000 DN 100
• Floating ball with 140 mm diameter
• Flow rates in litres / second: 0.66, 0.80, 0.88, 1.00, 1.05, 1.11, 1.14, 1.64
• The flow specifications of 3P flow regulators have been verified by third party testing and reports are available upon request.
