Flow regulators slow the outflow during to rain events to protect the sewer or a surface water from excessive inflows.

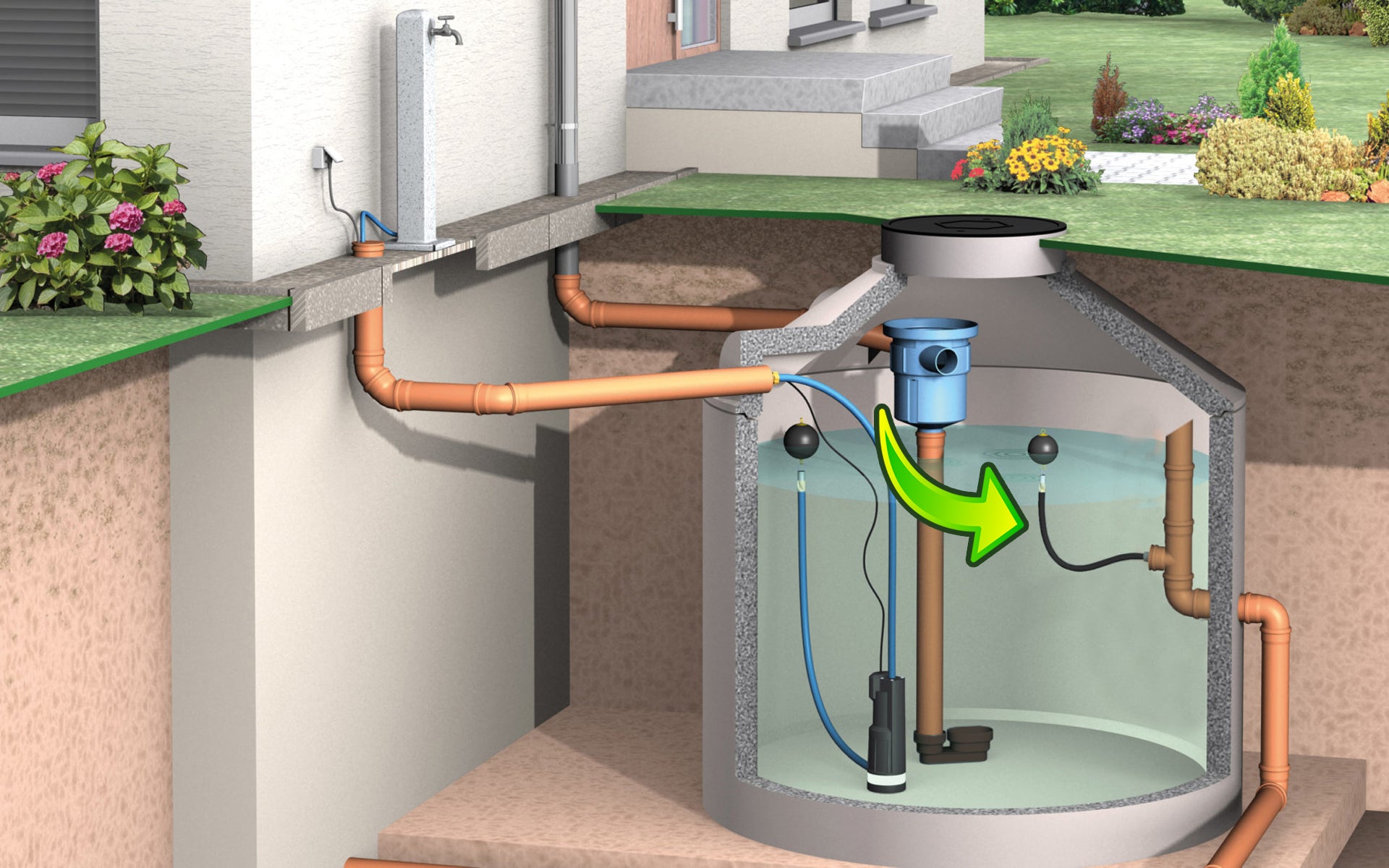

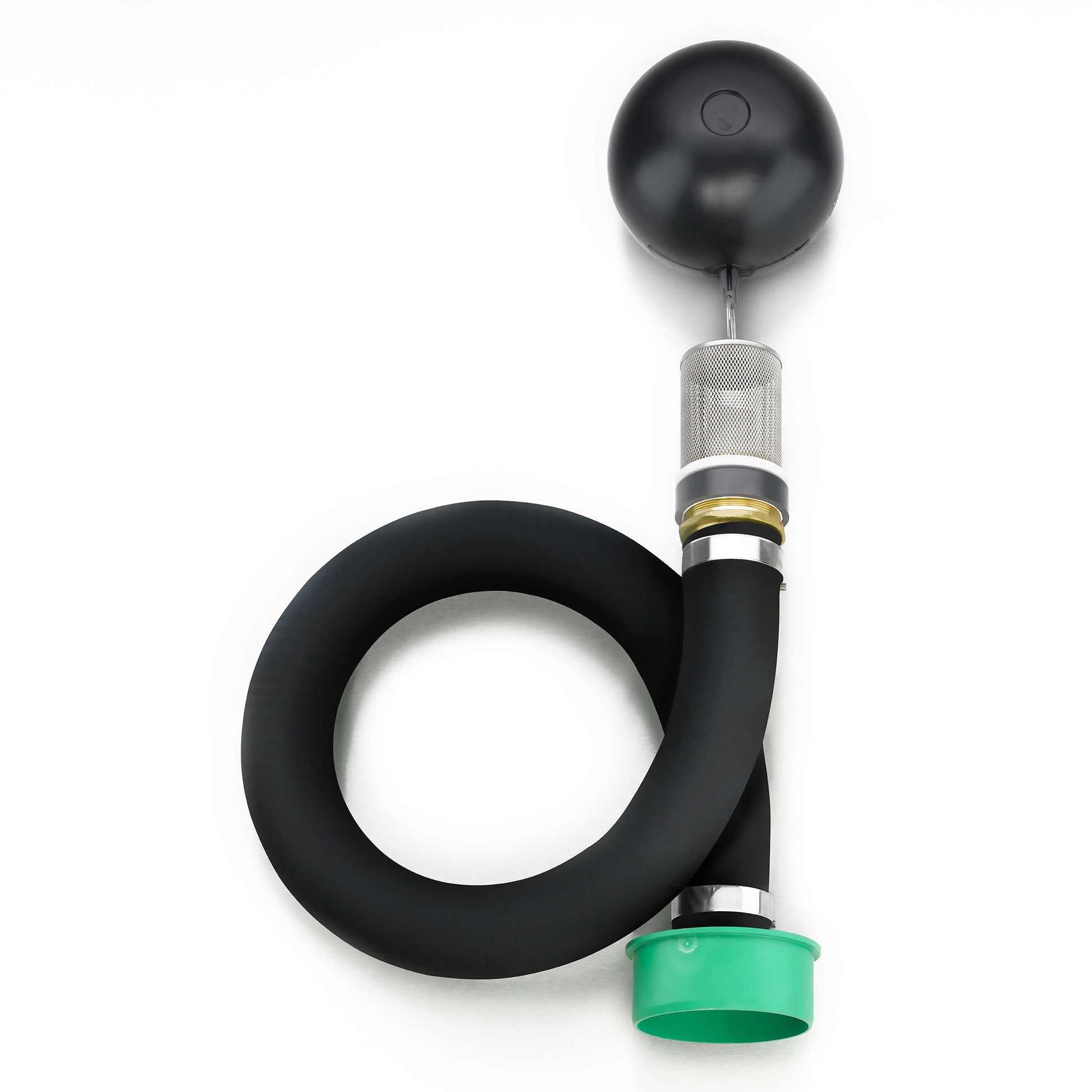

3P Flow regulator for retention reservoir, are constructed like a floating withdrawal with floating ball and filter basket. The throttle element is located between the filter basket and the hose nozzle. The throttle volume is adjusted at the throttle element.
• Hose dimension: 4“
• Hose length: 1.5 m
• Sleeve plug: KG 2000 DN 150
• Floating ball with 220 mm diameter
• Flow rates in litres / second: 0.83, 1.25, 1.61, 1.69, 1.89, 2.04, 2.44, 2.94, 3.13, 3.85
• The flow specifications of 3P flow regulators have been verified by third party testing and reports are available upon request.
