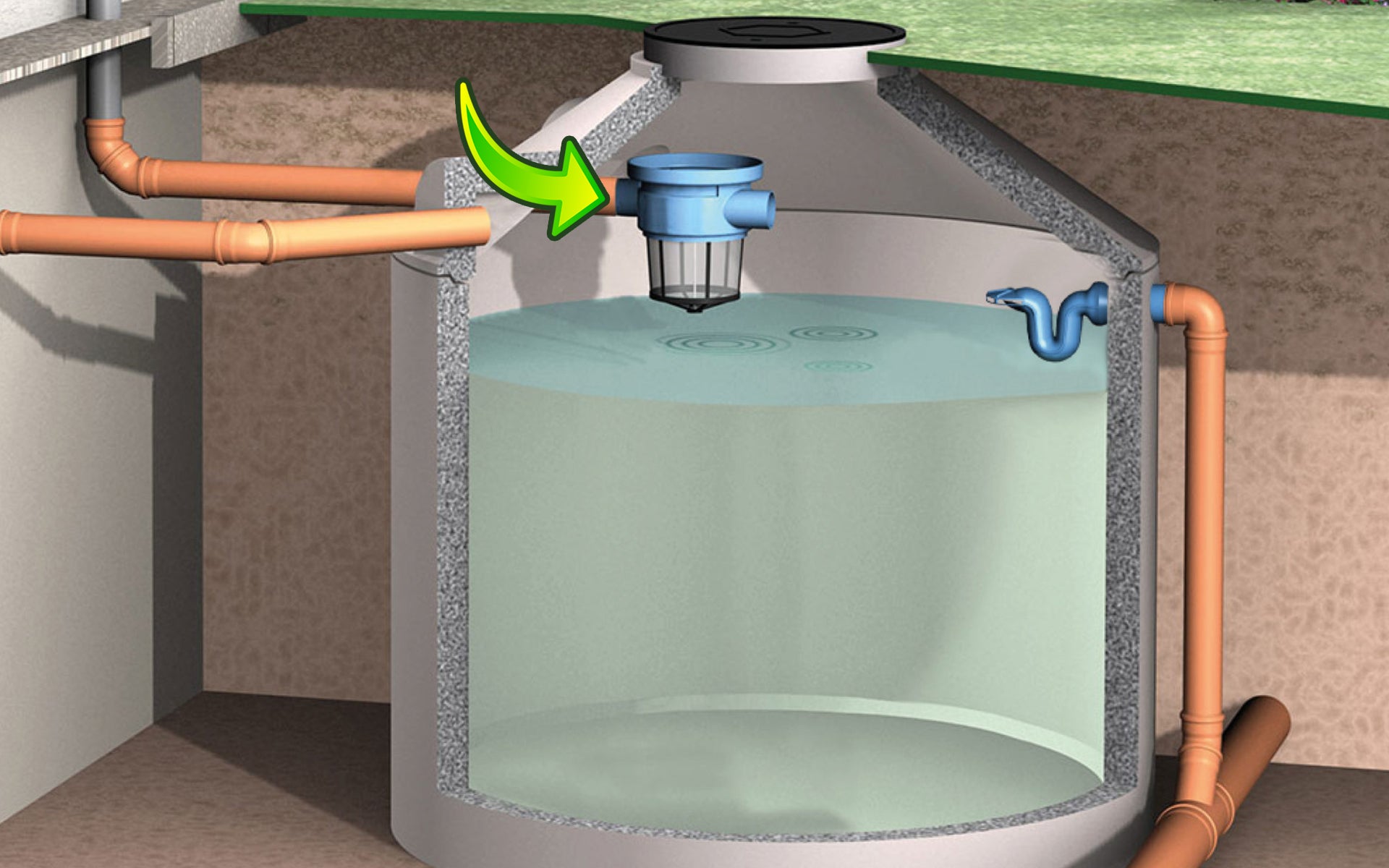

Rainwater filter with integrated dirt trap for installation in the rainwater storage tank. The plastic dirt trap is attached to the housing in such a way that it can be easily removed by means of the removal rod.

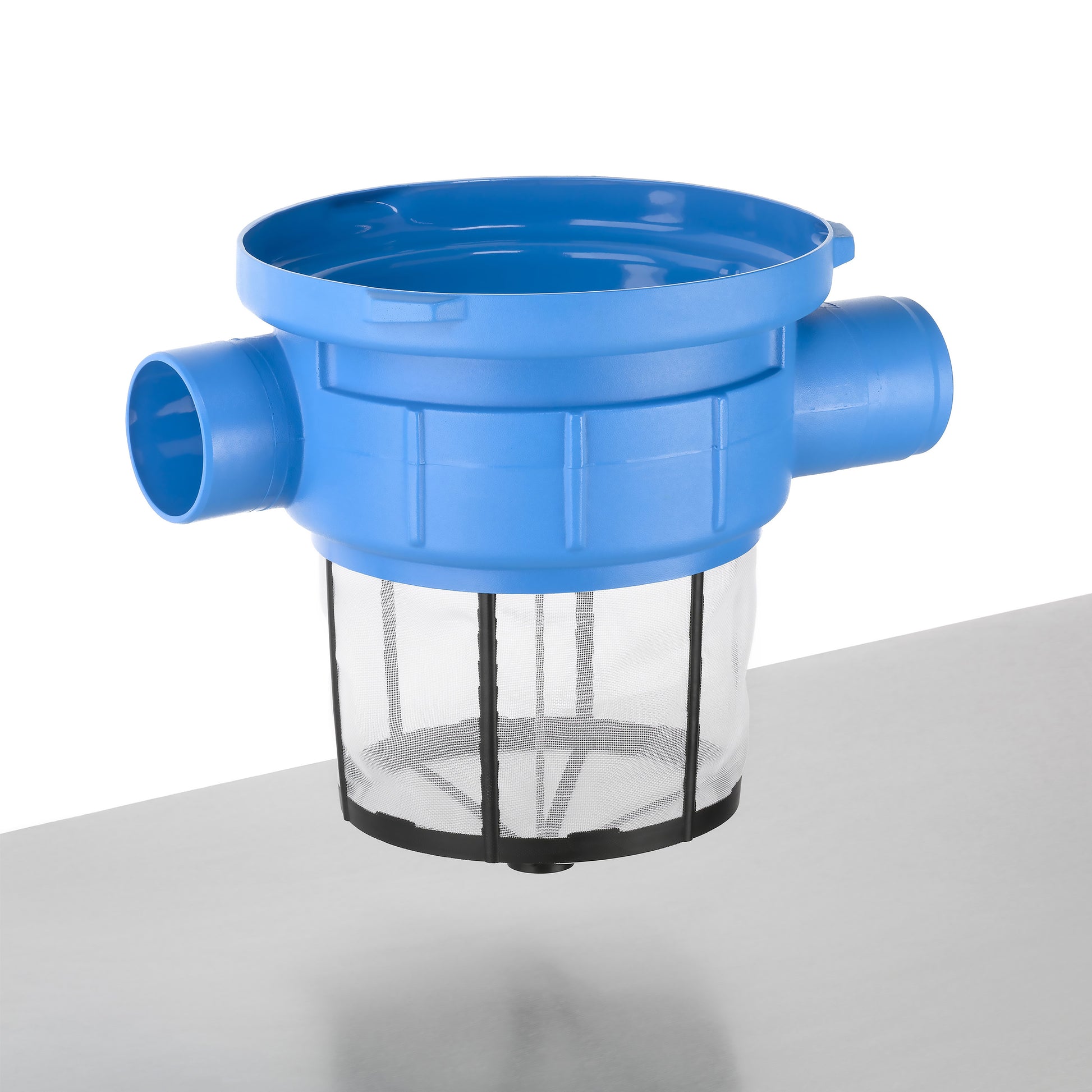

The 3P garden basket filter is ideal for systems that are only intended for garden irrigation.
• Rainwater filter according to DIN 1989-2, type B
• Inlet connection: DN 100
• Outlet into the storage tank: DN 100
• Emergency overflow or further inlet: DN 100
• Connection capacity: 213 m² roof area
• Dimensions of housing: Ø 390 x H: 135 mm
• Material filter basket: polyethylene
• Material housing: polyethylene
• Mesh size: 1 mm
• Dimensions basket: Ø 305 x H: 245 mm
