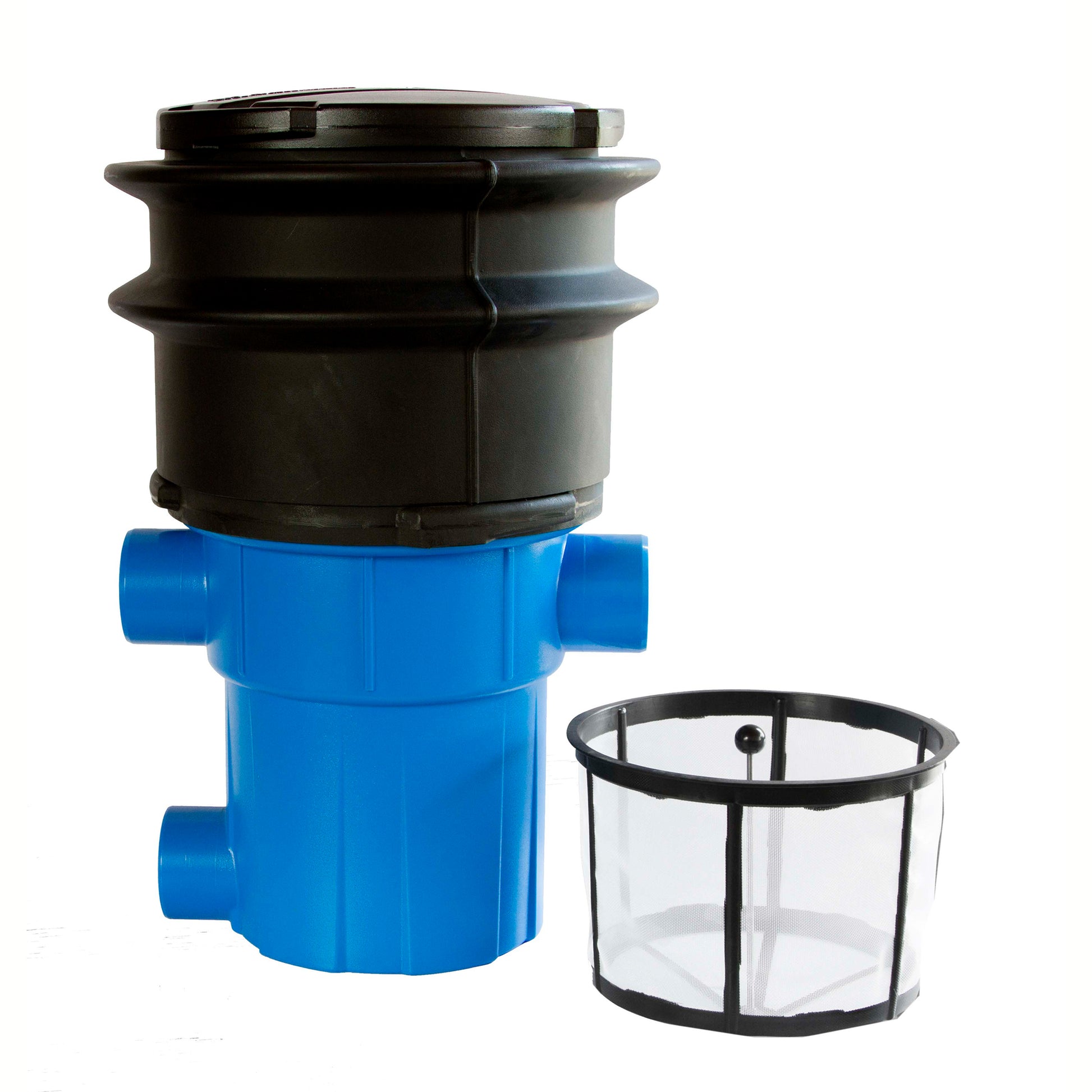

Rainwater filter with integrated dirt trap for installation in front of the rain- water storage tank. Equipped with a plastic shaft that can be moved in itself. This allows the telescopic extension to be easily adjusted to the height conditions during installation on site. If required, the telescopic ex- tension can also be shortened. It is also possible to place several extensions on top of each other.
The dirt trap made of plastic is mounted in the housing in such a way that it can be easily removed via the removal rod. The 3P garden filter is ideal for systems that are only intended for garden irrigation.

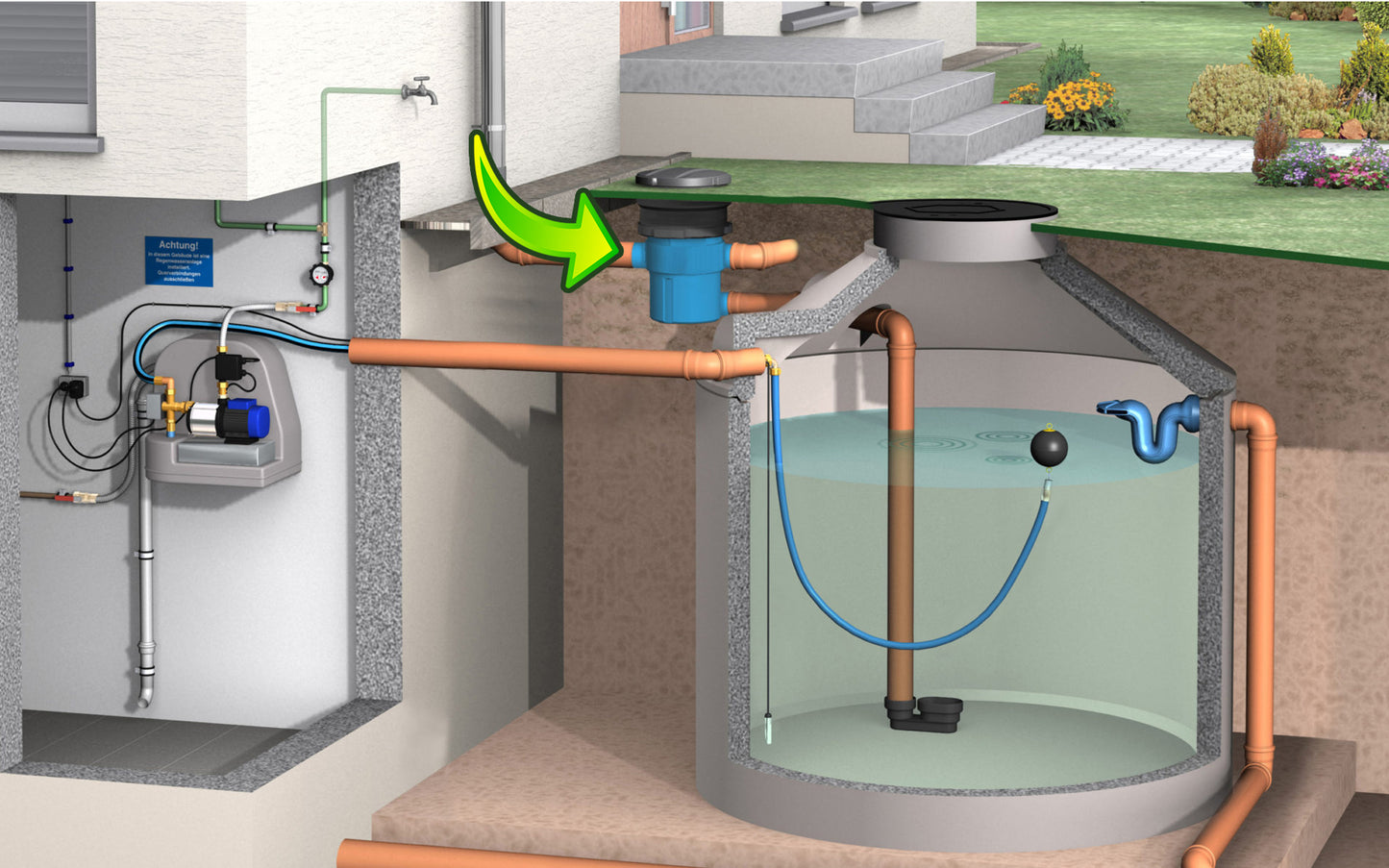

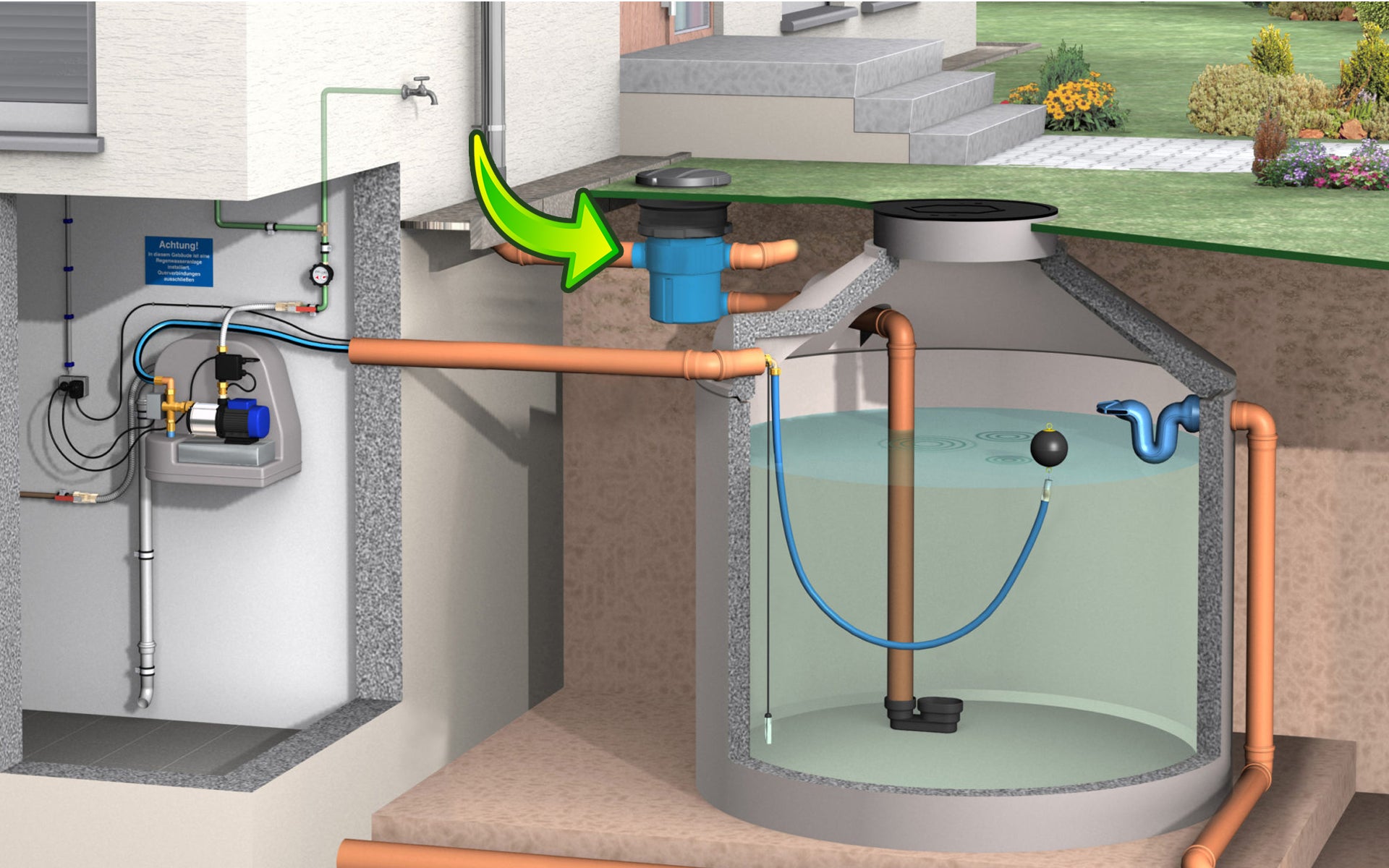

The two upper DN 100 connections can be used as feed or optionally as emergency overflow. The inlet to the rainwater storage tank is via the lateral connection piece, to which a 3P calmed inlet can also be attached.
• Inlet connection: DN 100
• Connection capacity: 213 m² roof area
• The purified water can be used for garden irrigation
• Height difference between inlet and outlet: 220 mm
• Dimensions of housing: Ø 386 x W: 575 x H: 1075 mm
• Material filter insert: polyethylene
• Material housing: polyethylene
• Dimensions basket: Ø 305 x H: 245 mm
• Mesh size: 1 mm
