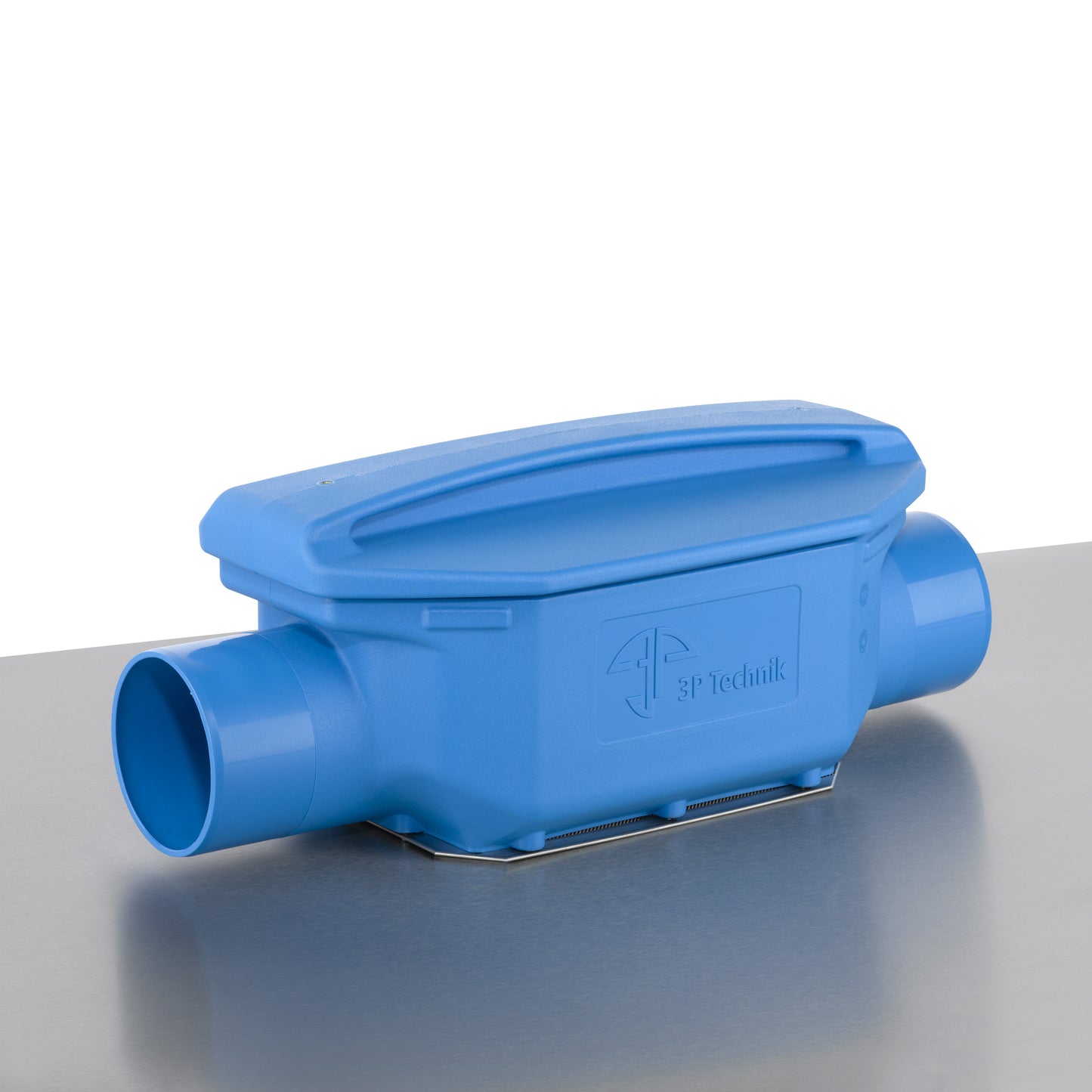

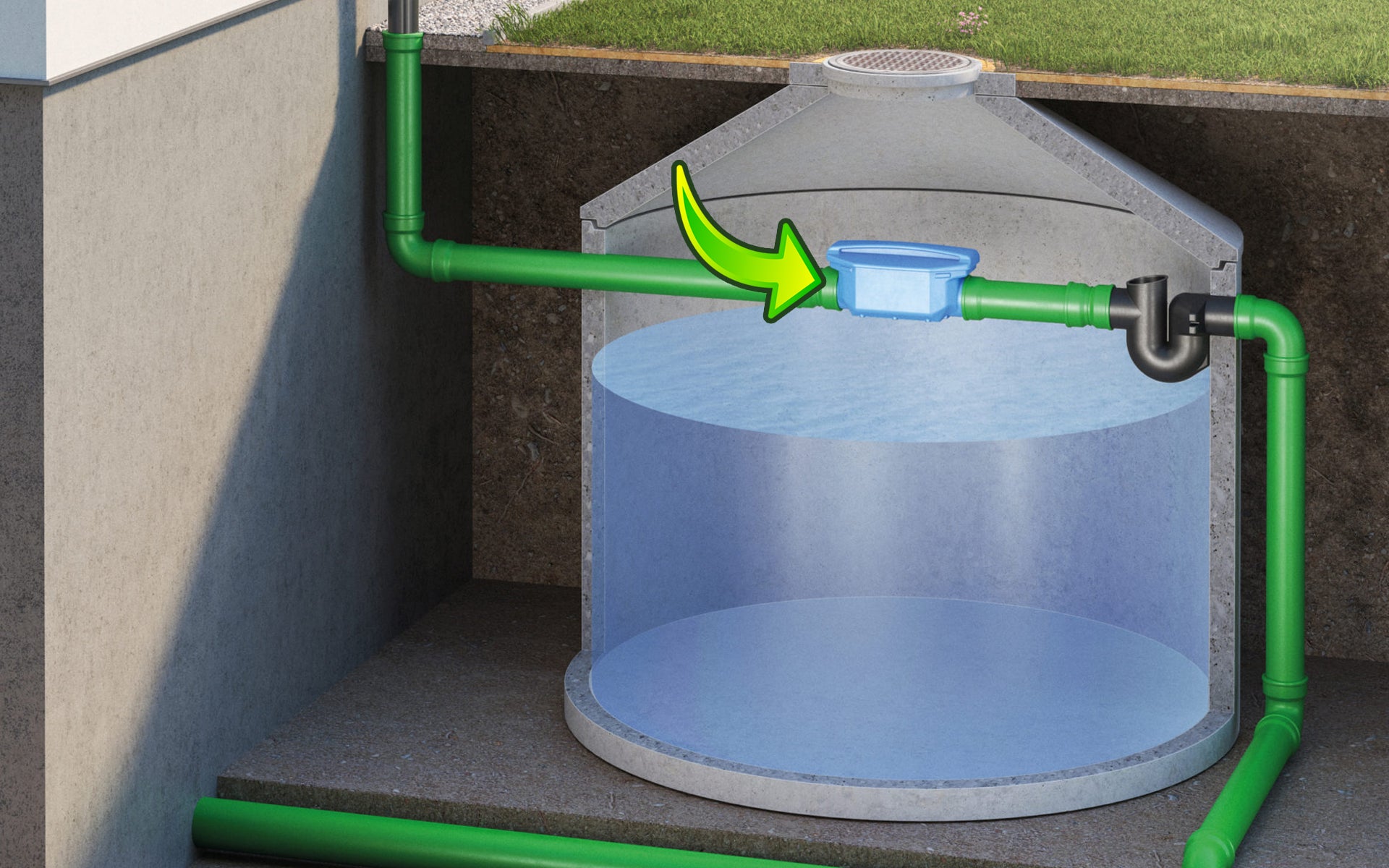

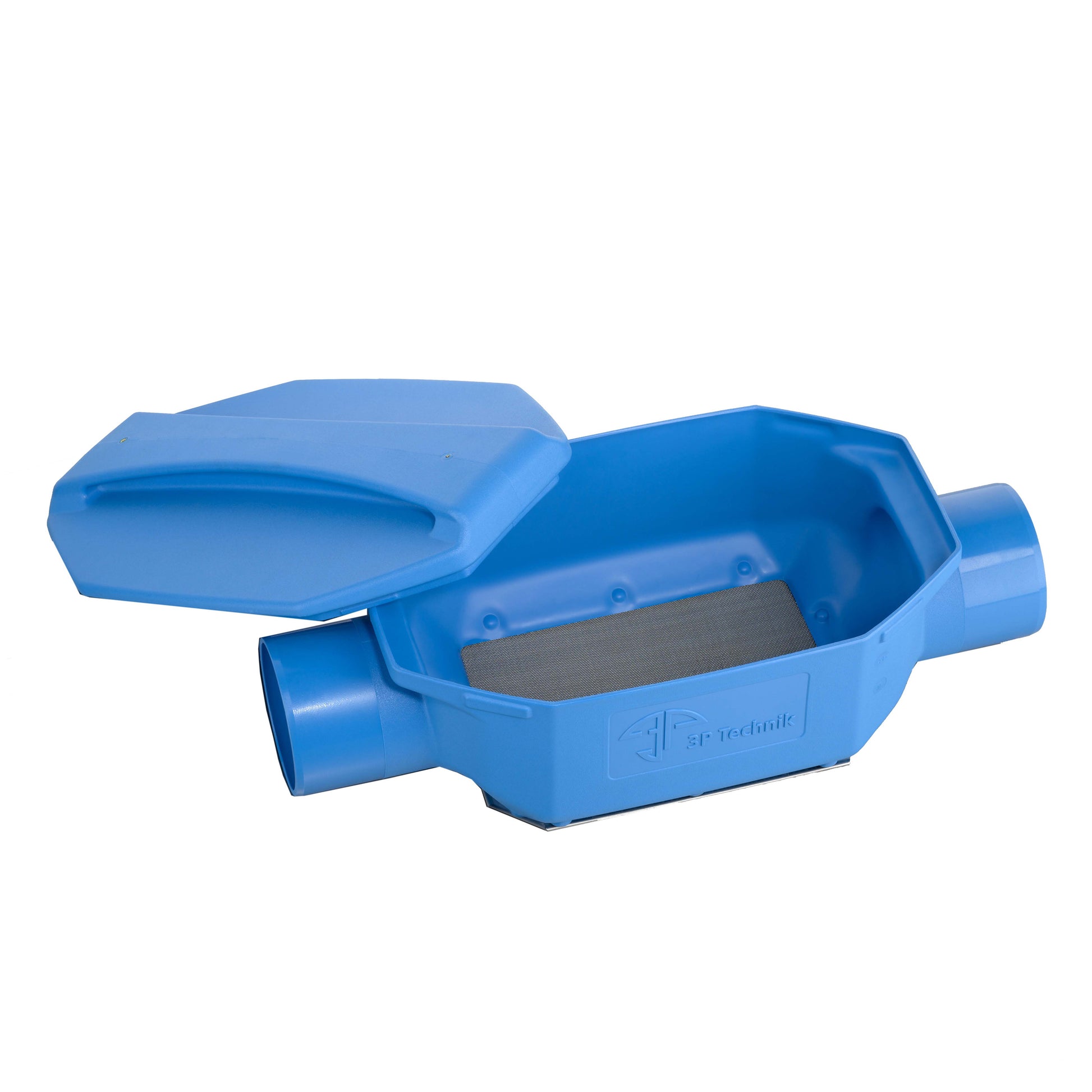

Rainwater filter for larger roof areas and rainwater tanks. The 3P Irrigation flat filter is installed in the rainwater tank and has no height offset. Due to its innovative design, this filter has a very large filter area and a very high efficiency (in the cover) independent of the volume flow in order to channel as much rainwater as possible into the cistern.
The dirt load is continuously flushed into the sewer system. The special feature of the cost-effective trickling filter is that the cleaned water trickles directly into the cistern, without a calmed inlet.
• Rainwater filter type C according to DIN 1989 -2
• Inlet connection DN 150
• Outlet into the storage tank: DN 150
• Height difference between inlet and outlet: 0 mm
• Material filter screen: Stainless steel 1.4301
• Material housing: polyethylene
• Mesh size 0.39 x 0.98 mm
• Dimensions: L: 685 x W: 284 mm
