3P Retention & Infiltration Filter
3P Retention & Infiltration Filter
Couldn't load pickup availability

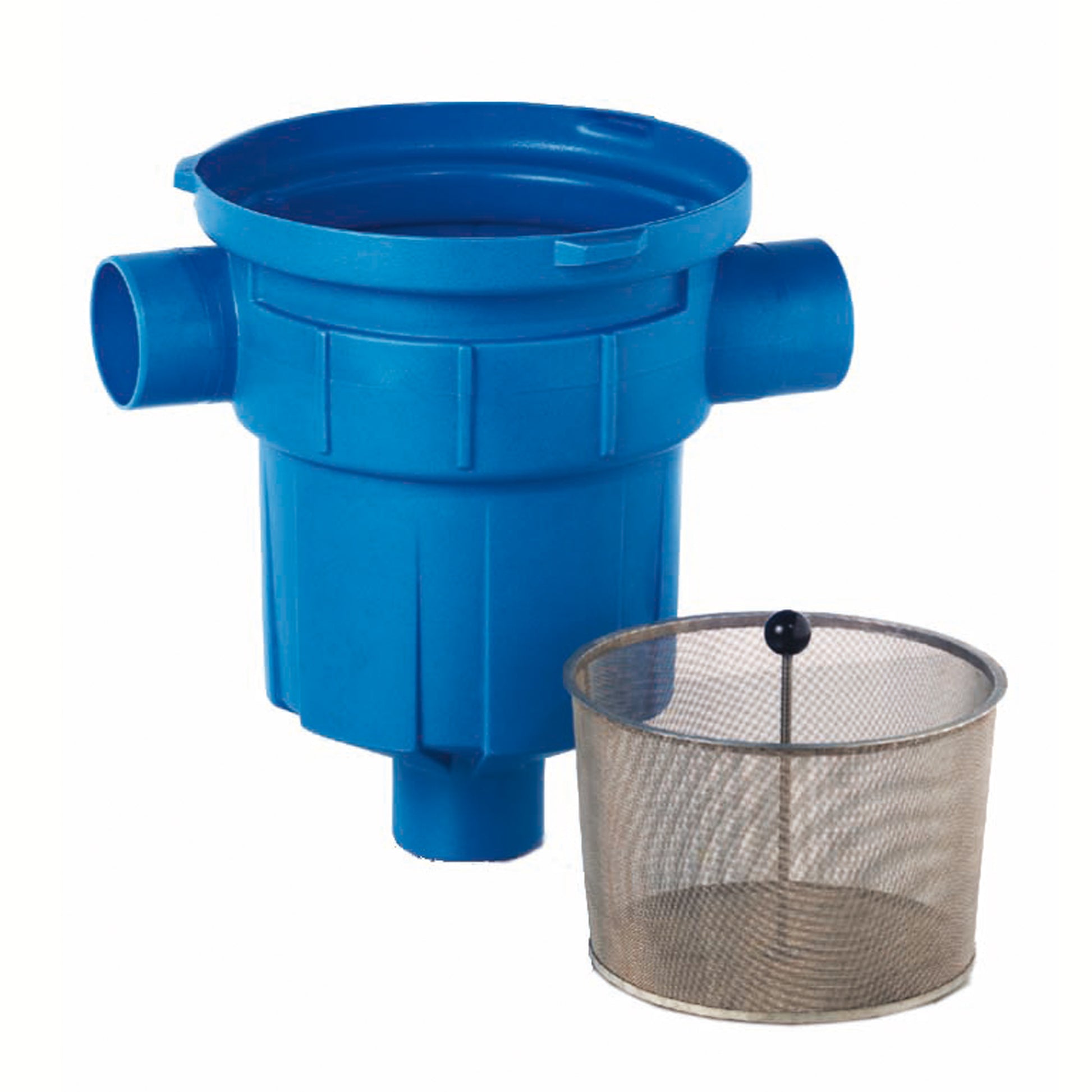

Rainwater filter with integrated dirt trap for installation in the rainwater storage tank. The stainless steel dirt trap is mounted in the housing in such a way that it can be easily removed via the removal rod.

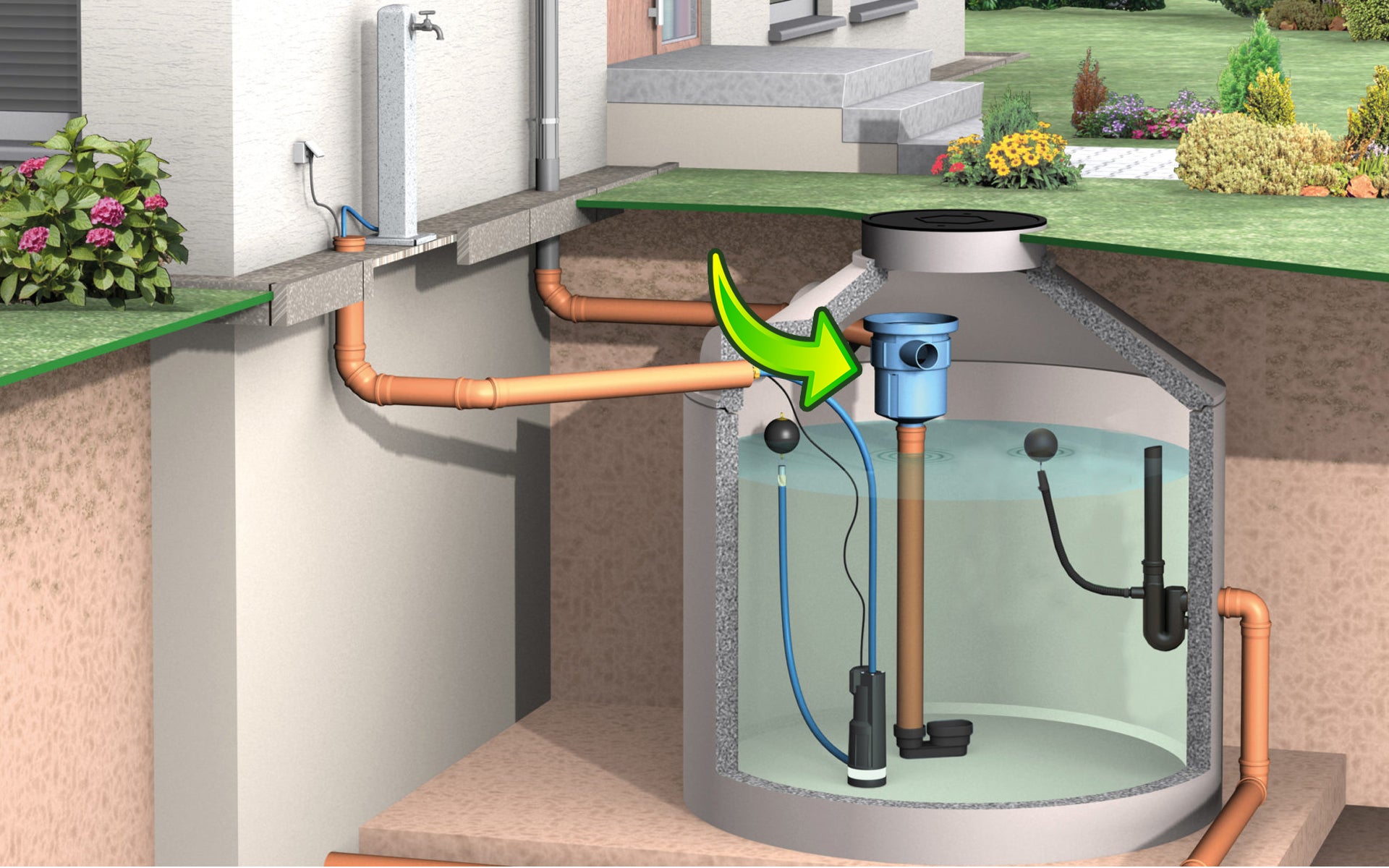

The 3P retention and infiltration filter is ideal for systems that use the purified rainwater for toilets, washing machines and garden irrigation and where the water is fed into the natural water cycle via an infiltration system. Thus, the filter is also suitable in cases where no connection to the sewer is possible to drain off excess rainwater or where the excess water may only be fed into the sewer via an attenuation flow regulator.
Share

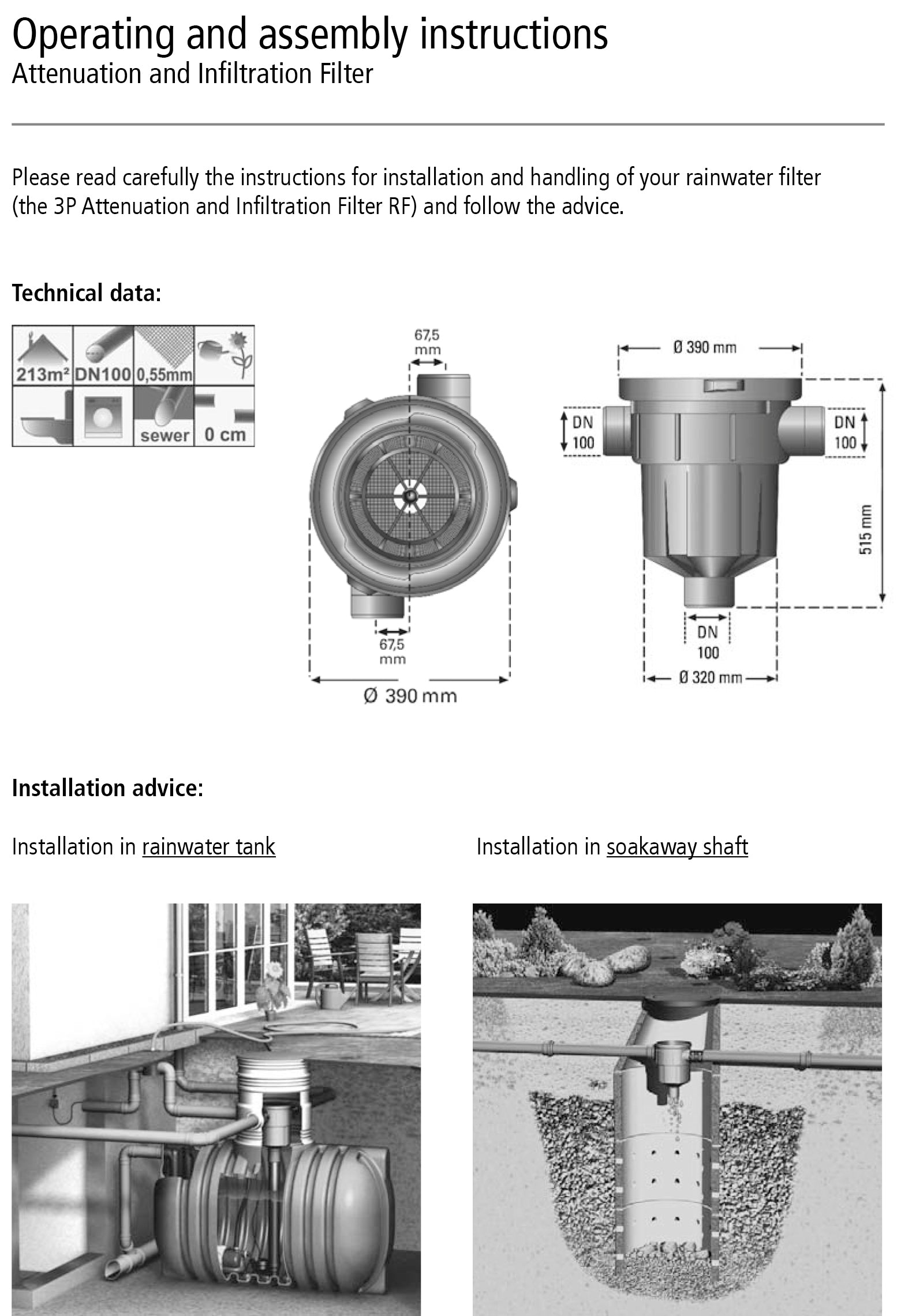

Technical Specifications
• Rainwater filter according to DIN 1989-2, type B
• Inlet connection: DN 100
• Outlet into the storage tank: DN 100
• Emergency overflow or further inlet: DN 100
• Dimensions of housing: Ø 390 x 515 mm
• Material filter basket: stainless steel 1.4301
• Mesh size: 0.55 mm
• Dimensions basket: Ø 305 x H: 245 mm
