3P Retention & Infiltration Filter with Telescopic Extension

3P Retention & Infiltration Filter with Telescopic Extension

Regular price $823.68 CAD
Regular price Sale price $823.68 CAD
Sale Sold out
Shipping calculated at checkout.

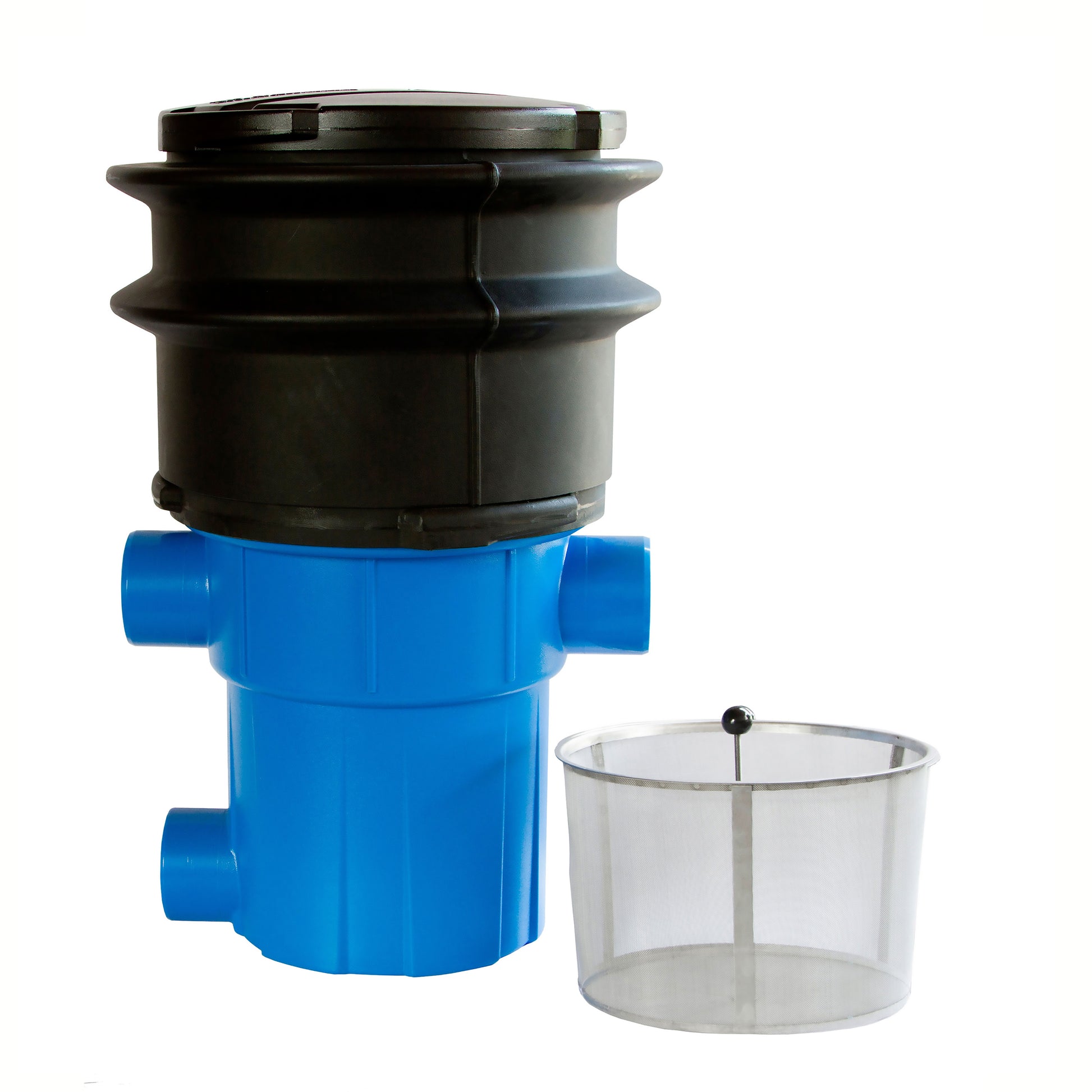

Rainwater filter with integrated dirt trap for installation in front of the rainwater storage tank. Equipped with a plastic shaft that can be moved in itself. This allows the telescopic extension to be easily adjusted to the height conditions during installation on site. If necessary, the telescopic ex- tension can also be shortened. It is also possible to place several extensions on top of each other.

The stainless steel dirt trap is mounted in the housing in such a way that it can be easily removed via the removal rod.

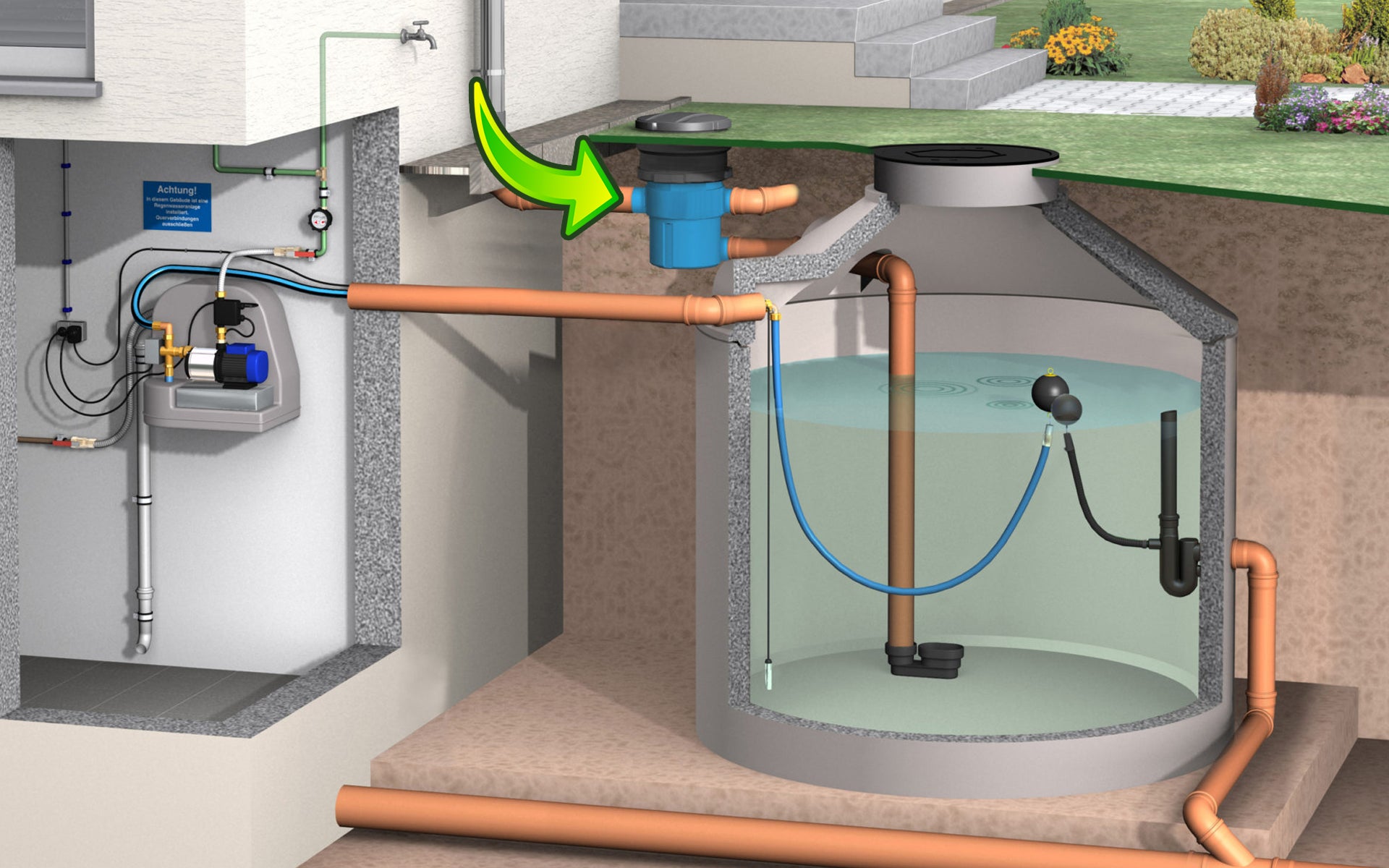

The 3P retention and infiltration filter is ideal for systems that use the treated rainwater for toilets, washing machines and garden irrigation and where the excess water must be infiltrated on the property because no sewer connection is possible water may only be discharged into the sewer via an attenuation flow regulator.

View full details

Technical Specifications

• Rainwater filter according to DIN1989-2, type B
• Inlet connection: DN 100
• Outlet into the storage tank: DN 100
• Emergency overflow or further inlet: DN 100
• Height difference between inlet and outlet: 270 mm
• Dimensions of housing: Ø 386 x W: 575 x H: 1075 mm
• Material filter basket: stainless steel 1.4301
• Material housing: polyethylene
• Mesh size: 0.55 mm
• Dimensions basket: Ø 305 x H: 245 mm
