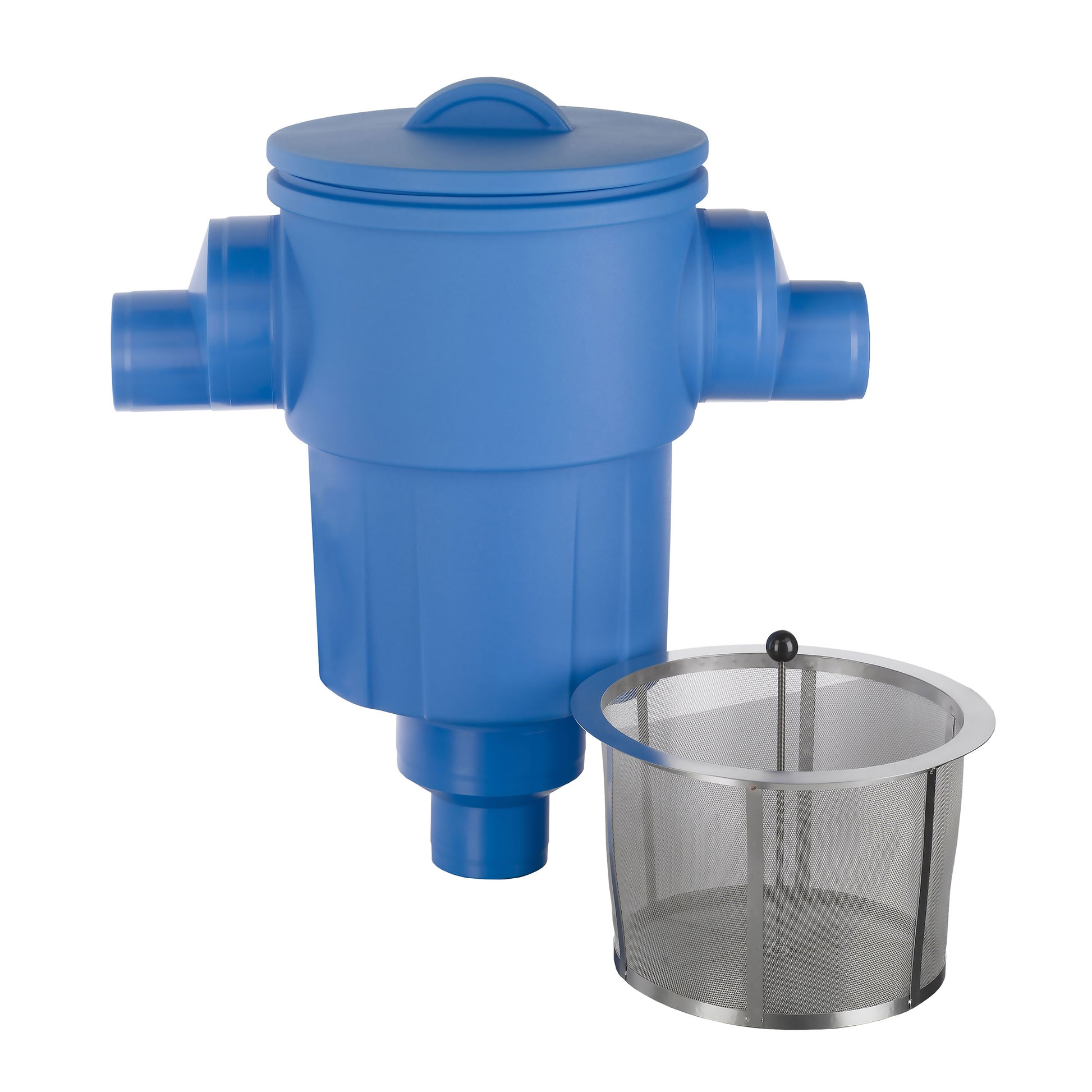

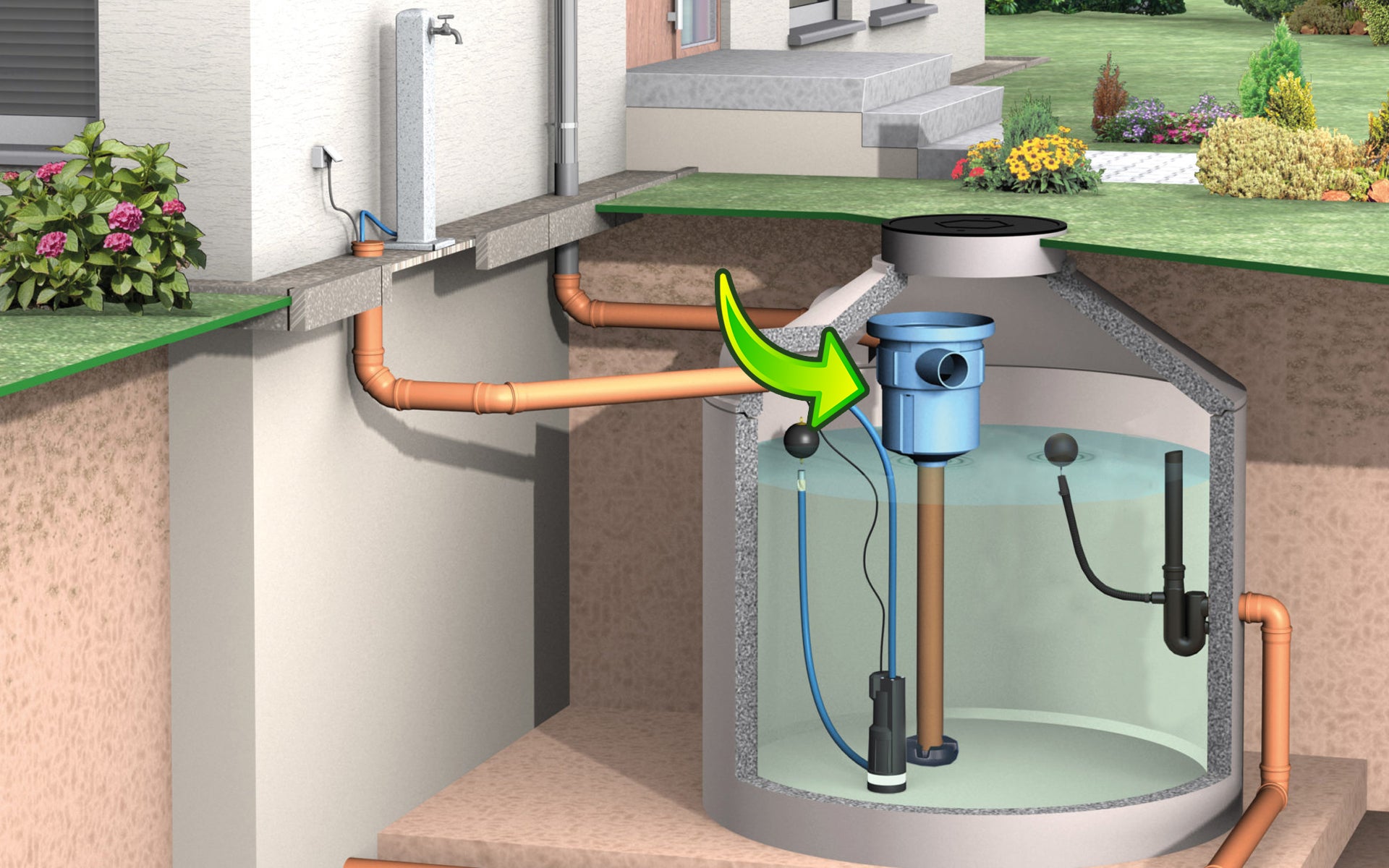

Rainwater filter with integrated dirt trap for installation in the rainwater storage tank. The stainless steel dirt trap is mounted in the housing in such a way that it can be easily removed via the removal rod. The 3P retention and infiltration filter XL is ideal for systems that use the treated rainwater for toilets, washing machines and garden irrigation and where the excess water must be infiltrated on the property.
The two upper DN 150 connections can be used as an inlet or optionally as an emergency overflow.
• Inlet connection: DN 150
• Connection capacity: 627 m² roof area
• Dimensions of housing: L: 785 x W: 815 mm
• Material filter basket: stainless steel
• Material housing: polyethylene
• Mesh size: 0.55 mm
• Dimensions basket: Ø 410 x H: 275 mm
Original Equipment Manufacturer
