3P Retention & Infiltration Filter XL DN150
3P Retention & Infiltration Filter XL DN150
Couldn't load pickup availability

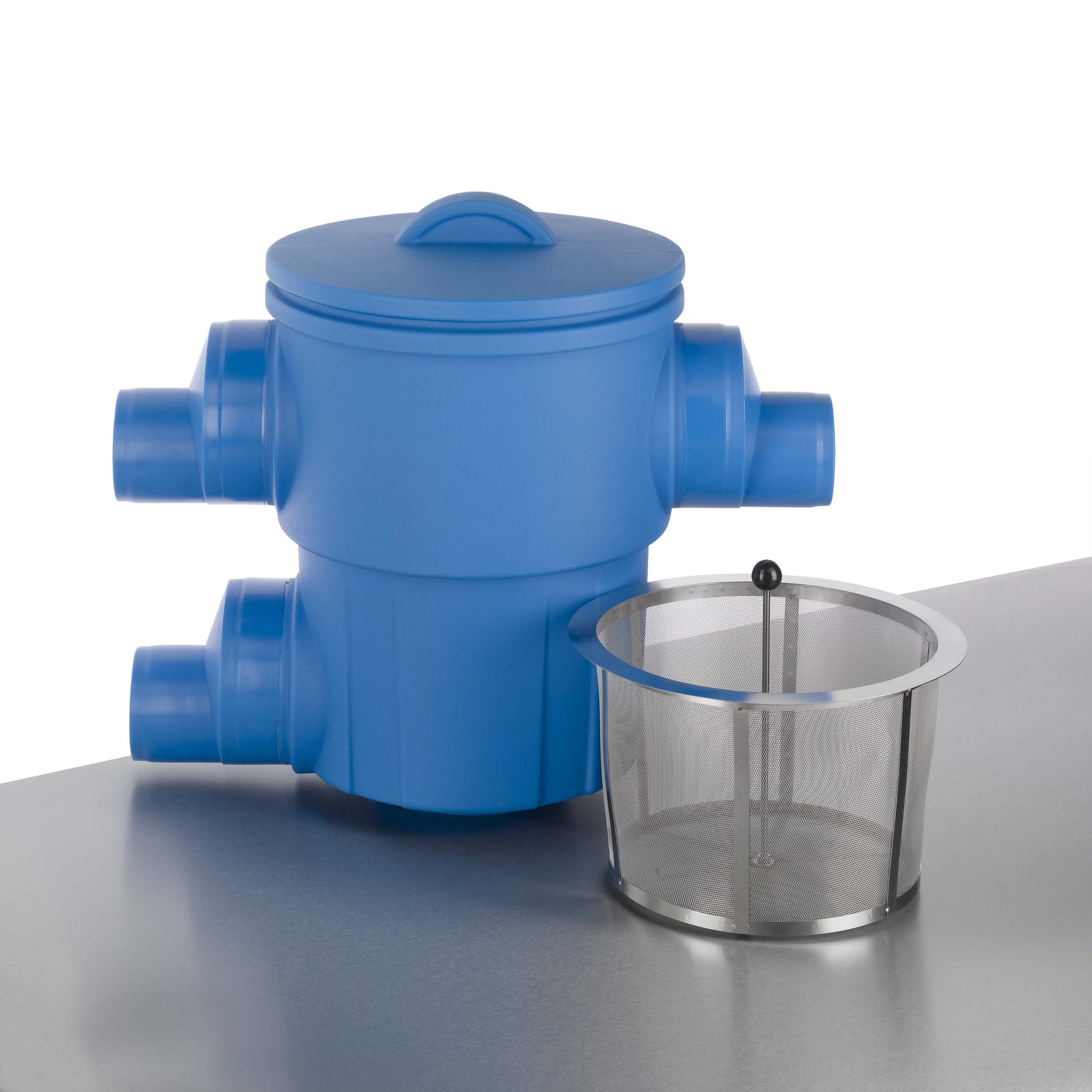

Rainwater filter with integrated dirt trap for installation in front of the rainwater storage tank.
The stainless steel dirt trap is housed in such a way that it can be easily removed using the removal rod.
The 3P Retention and Infiltration Filter XL is ideal for systems where cleaned rainwater is used for toilets, washing machines, and garden irrigation, and where excess water must be infiltrated on the property. The two upper nozzles, DN 150 or DN 200, can be used either as an inlet or optionally as an emergency overflow.
Share


Technical Specifications
Inlet connection: DN 150 / DN 200
Connection capacity: 627 m² roof area
Housing dimensions: W: 785 x H: 660 mm
Filter basket material: Stainless steel
Housing material: Polyethylene
Mesh size: 0.55 mm
Filter basket dimensions: Ø 410 x 275 mm

Original Equipment Manufacturer
