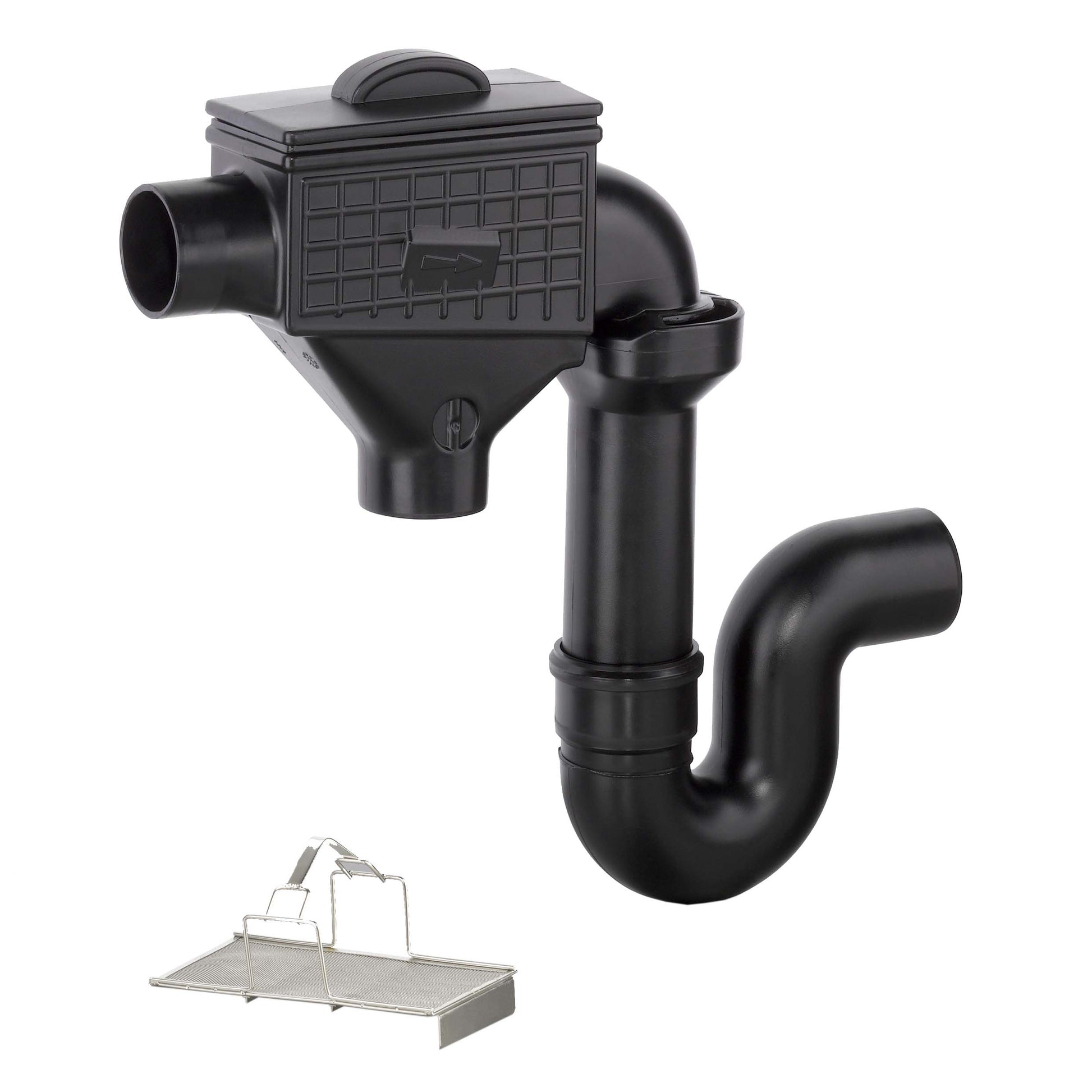

3P Siphon Filter

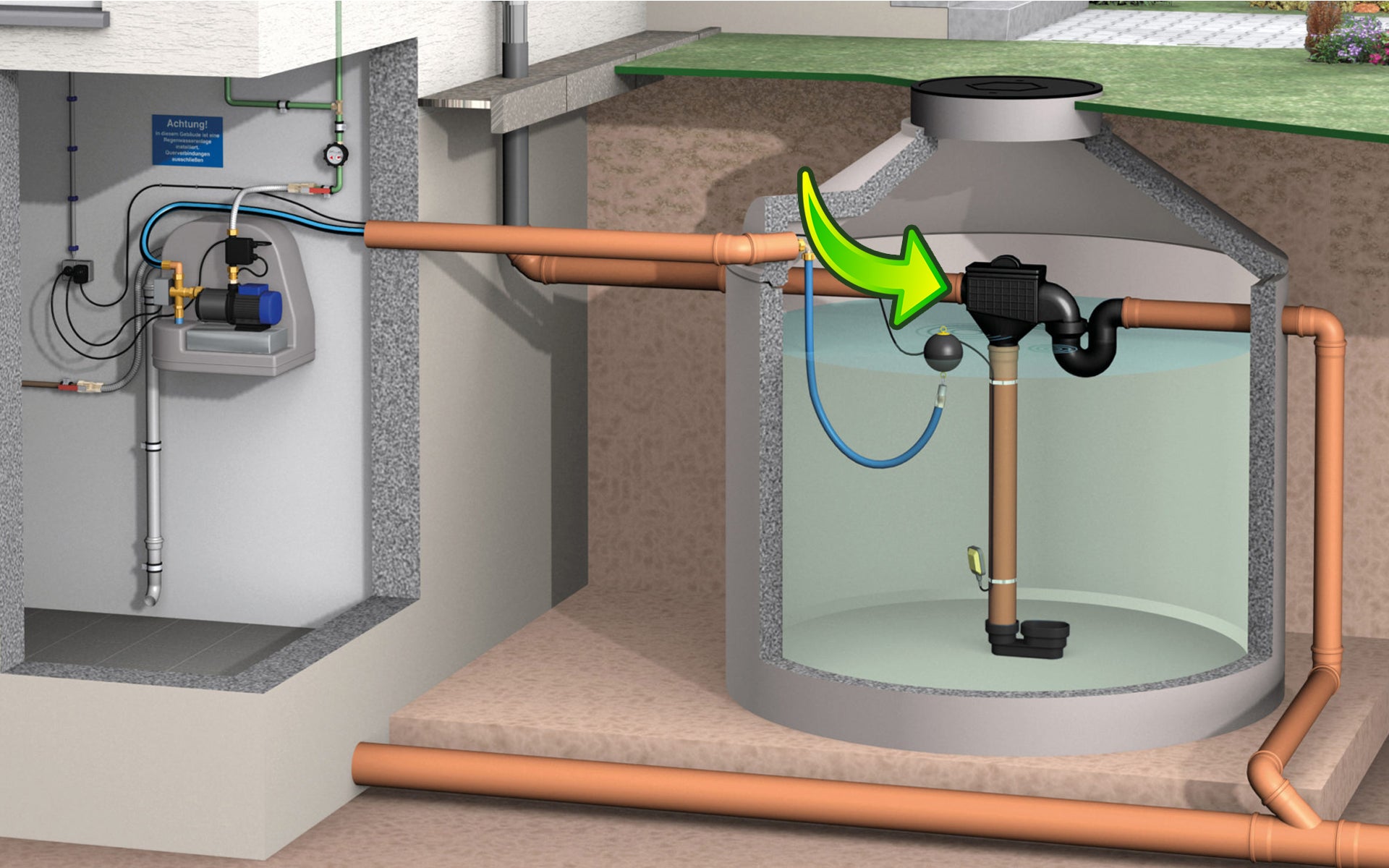

Small, compact rainwater filter for installation in rainwater storage tanks made of plastic or concrete. Due to the slight inclination of the screen surface, the filtered out dirt is flushed into the canal. The height difference can be slightly varied between 280 mm and 460 mm.

The internal screen surface is made of stainless steel (mesh size: 0.7 x 1.7 mm). The overflow siphon with odour trap and the suction of the surface water in DN 100 is already integrated in this filter (optionally also with backflow flap). The 3P siphon filter can be retrofitted with the 3P backwash set ZF. There is already an opening in the filter housing, which is closed with a cap. The cleaned water can be used for washing machine, toilet and garden irrigation.
