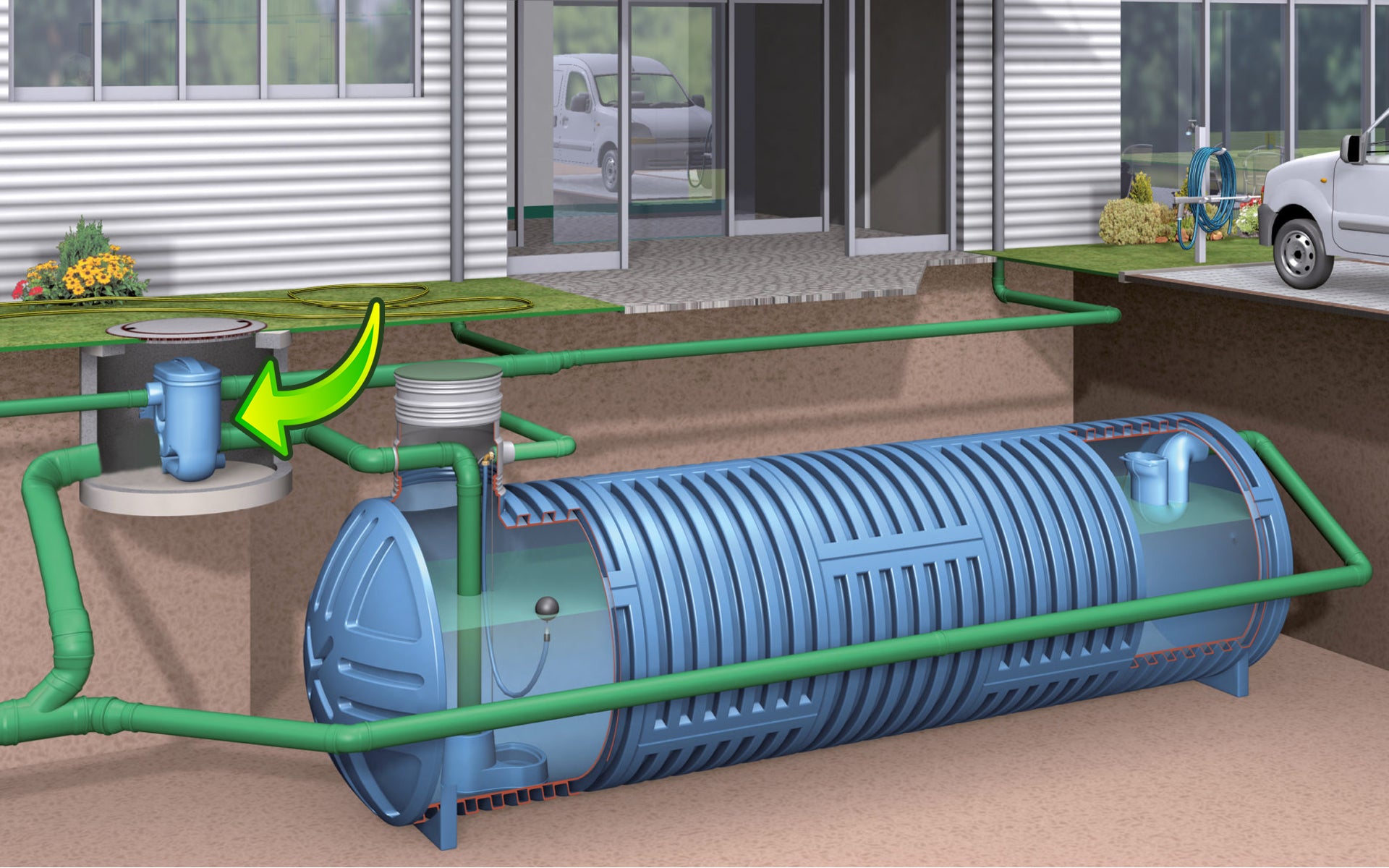

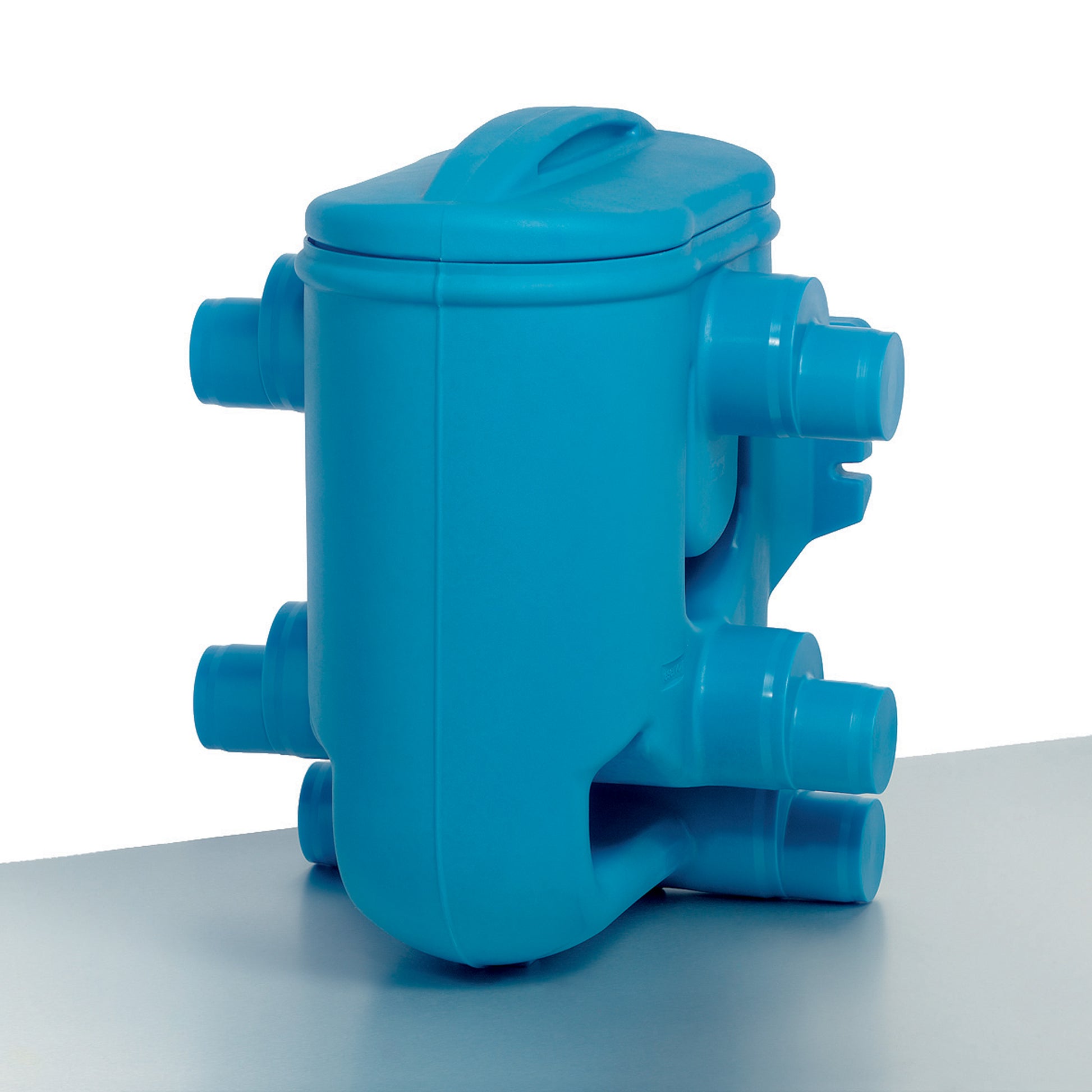

Rainwater filter for larger roof areas. The 3P Twin Filter can be installed in a pre- shaft or directly on the wall in frost-free regions. Standard concrete manholes (Ø 1000 mm) are usually used. The filter can be delivered to the construction site pre-assembled in the shaft.
Due to its 2-stage cleaning principle, it has a high degree of efficiency independent of the volume flow. Due to the steep position of the filter inserts, the filtered- out dirt is continuously flushed towards the sewage system. The clean water is collected in a tank and fed into the storage tank.
• Connection capacity: 426 m² roof area with 2x DN 100 and 2x drain DN 100
• Connection capacity: 1254 m² roof area with
• 2x DN 150 and 2x drain DN 150
• By means of a bypass installation, a larger a larger connection area is possible
• Rainwater filter according to DIN 1982-2, type C
• Rainwater inlet: 2x DN 100 / DN 150
• Inlet rainwater storage tank: 2x DN 100 / DN 150
• Outlet into the sewer: 2x DN 100 / DN 150
• Height difference between inlet and outlet: 500 mm
• Material housing and cascades: Polyethylene
• Material filter insert: stainless steel 1.4301
• Mesh size: 0.39 x 0.98 mm
