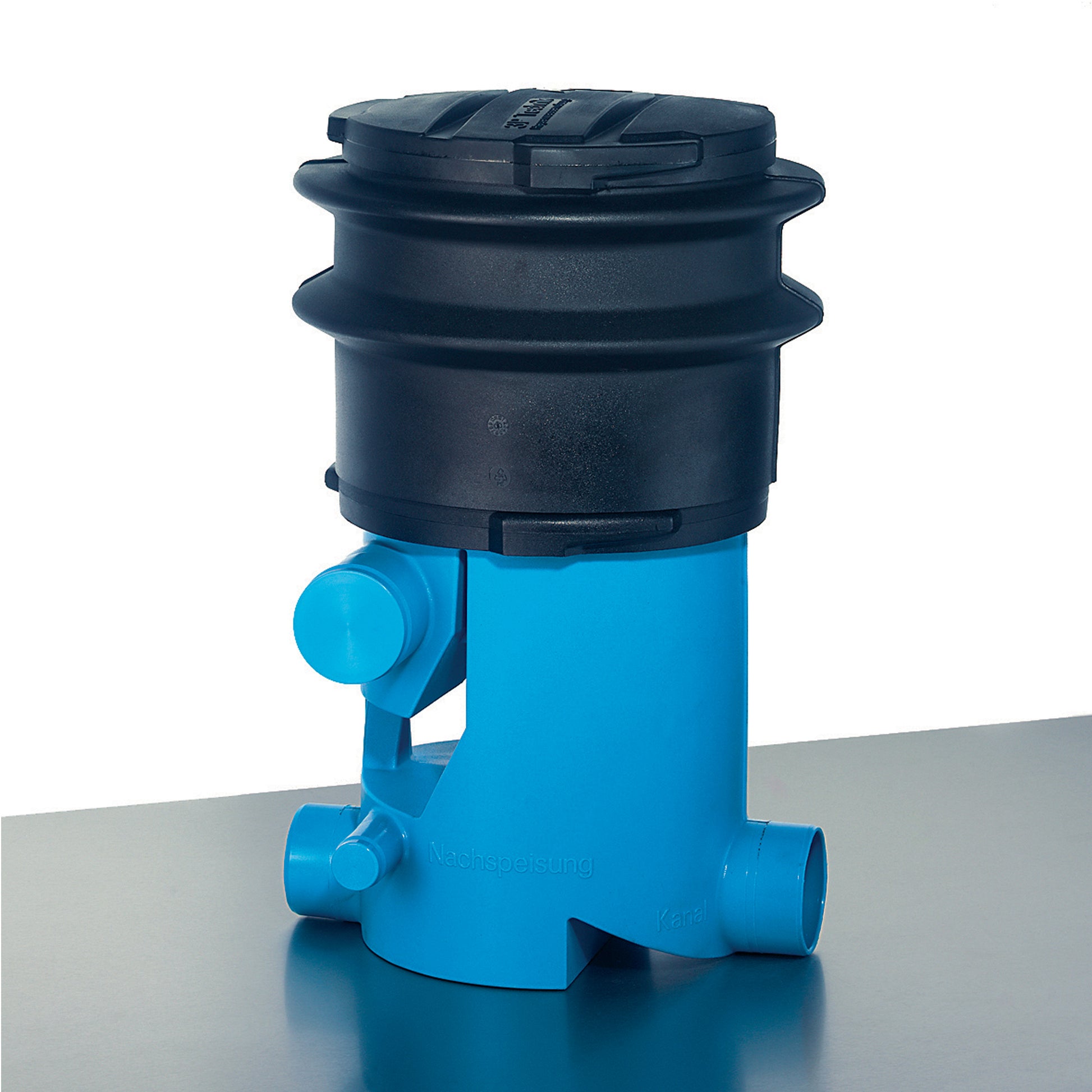

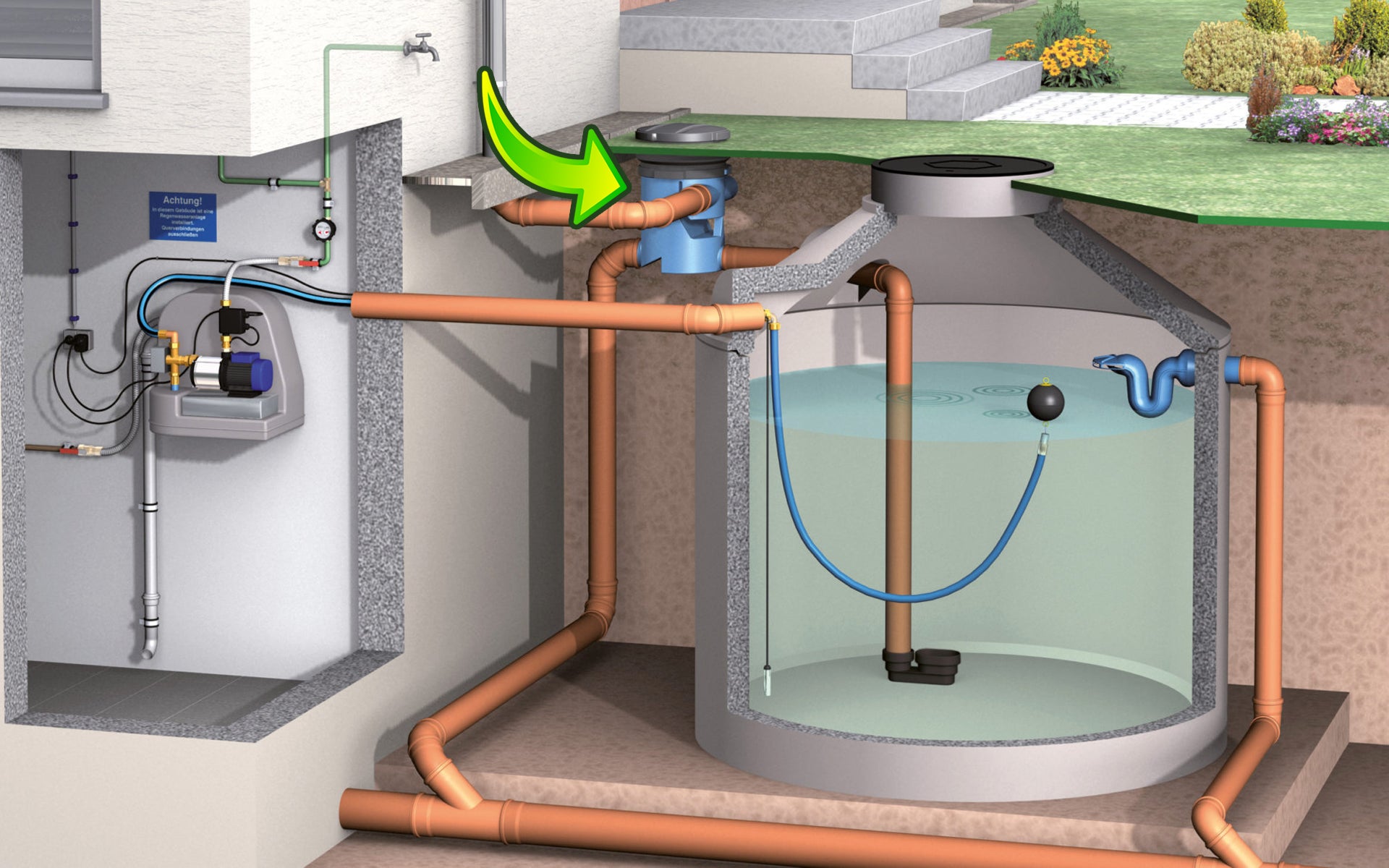

Rainwater filter for installation in the ground in front of the rainwater storage tank. Equipped with a plastic shaft that can be moved in itself. So the telescopic extension allows the height conditions during installation on site. If necessary, the telescopic extension can also be shortened. It is also possible to place several extensions on top of each other.
Due to its 2-stage cleaning principle (first Precleaning, then fine cleaning), the 3P volume filter VF1 has a high efficiency independent of the volume flow. Due to the steep position of the filter insert, the filtered-out solids are continuously flushed towards the sewer.
• Rainwater filter according to DIN 1989-2, type C
• Inlet connection: 2x DN 100
• Outlet into the storage tank: DN 100
• Outlet into the sewer: DN 125
• Height difference between inlet and outlet: 300 mm
• Dimensions of housing: Ø 390 x W: 550 x H:1050 mm
• Material filter insert: stainless steel 1.4301
• Mesh size: 0.25 x 0.60 mm
• Material cascade insert: polyethylene
• Dimensions filter: 404 x 451 mm
