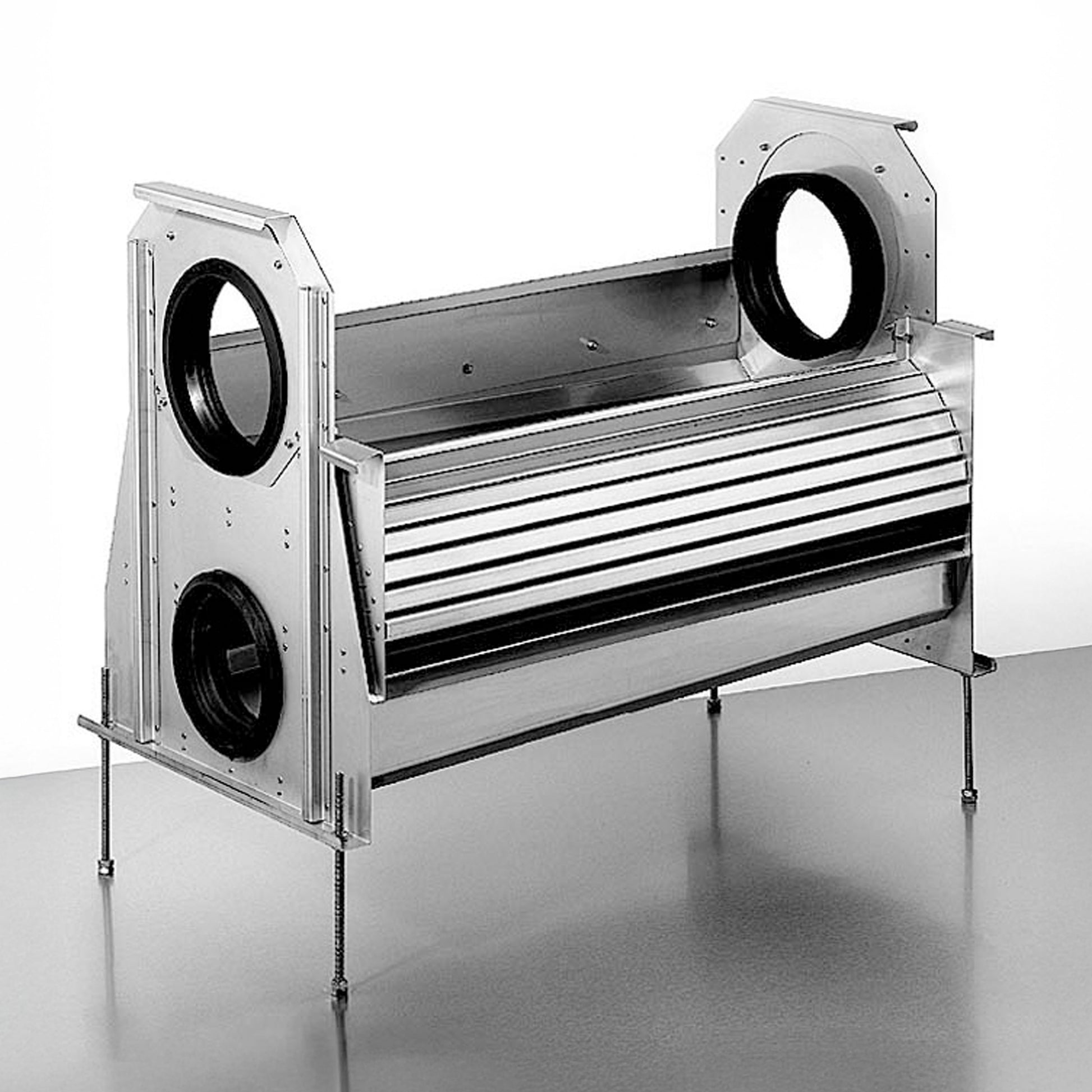

Rainwater filter for larger roof areas. The 3P volume filter VF3 must be in- stalled in a pre-shaft (Ø 1200 mm). As a rule, standard concrete manholes are used. The filter can be delivered to the construction site pre-assembled in the shaft.
Due to its 2-stage cleaning principle (first coarse, then fine cleaning), it has a high degree of efficiency independent of the volume flow. Due to the steep position of the filter insert, the filtered-out dirt is continuously flushed in the direction of the sewer, with the sewer connection being attached to the man- hole. The dirt falls to the bottom of the shaft and is flushed away during heavy rain.
• Relative connection capacity according to DIN 18481: up to 1347 m² roof area at a rainfall rate of 300 l/(sxha)
• By means of a bypass installation, a larger connection area is possible
• Rainwater inlet: DN 200
• Inlet rainwater storage tank: DN 150
• Drainage sewer: DN 200
• Height difference between inlet and outlet: 320 mm
• Mesh size: 0.39 x 0.98 mm
