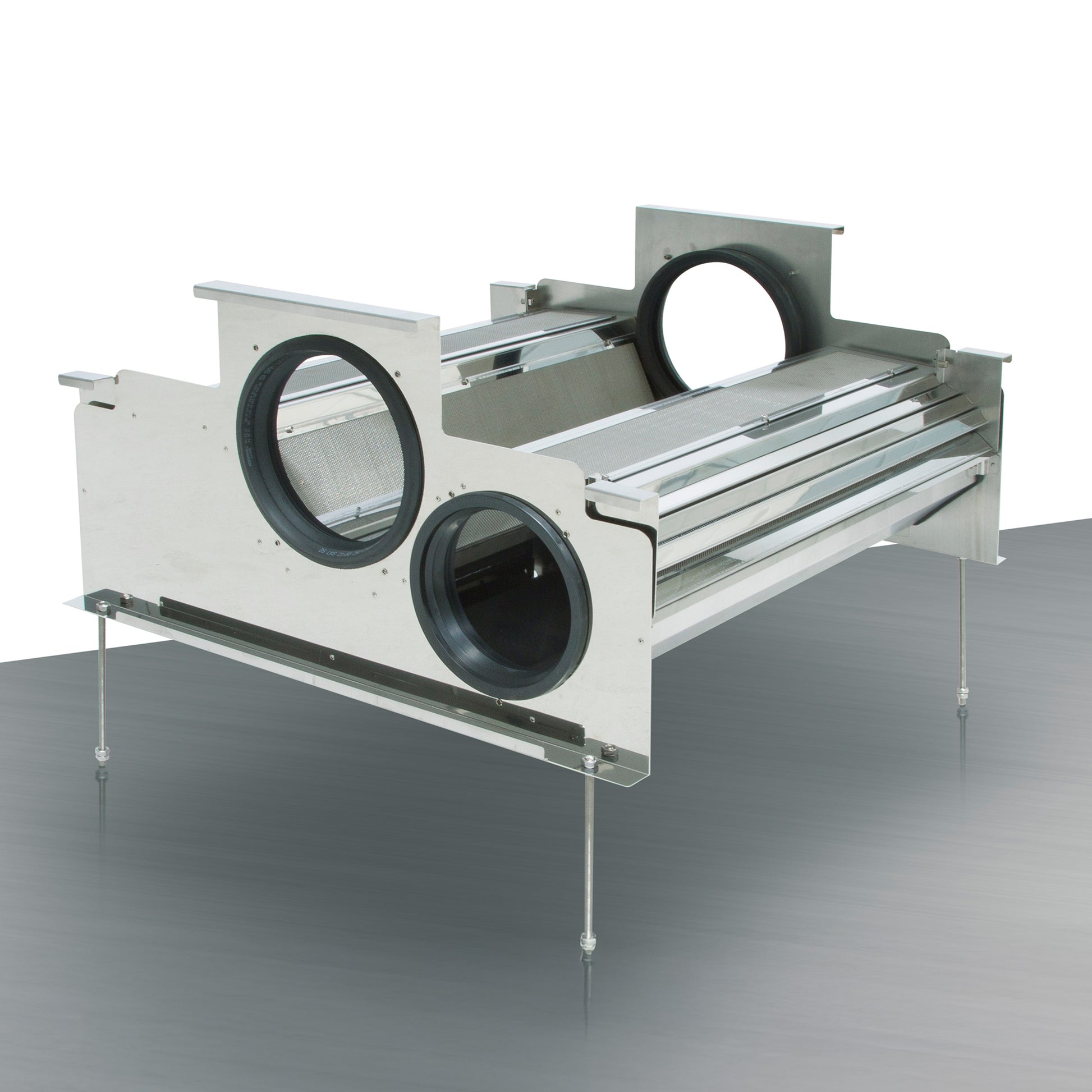

Depending on the volume flow and because of the arrangement of the different sieve surfaces, an optimal and maximum yield is achieved. The screens on the guide surfaces are cleaned automatically by different volume flows. This principle of self-cleaning, combined with the different screen surfaces, ensures minimum maintenance effort with a constantly high water yield.
Despite the maximum connectable area of 2433 m², the difference in height between the inlet and outlet is only 10 cm. That is - compared to competitors - up to 30 cm less. In addition to simpler planning, this not only makes planning easier, but also maximizes the storage volumes.
• Connectable area: 2433 m²
• Relative connection capacity according to DIN 18481: up to 2433 m² roof area with a rainfall capacity of 300 l/(sxha)
• By means of a bypass installation, it is also possible to a larger connection area is possible
• Rainwater inlet: 2x DN 250
• Inlet rainwater storage: DN 200
• Drainage sewer: DN 250
• Height difference: 100 mm
• Mesh size: 0.39 x 0.98 mm
